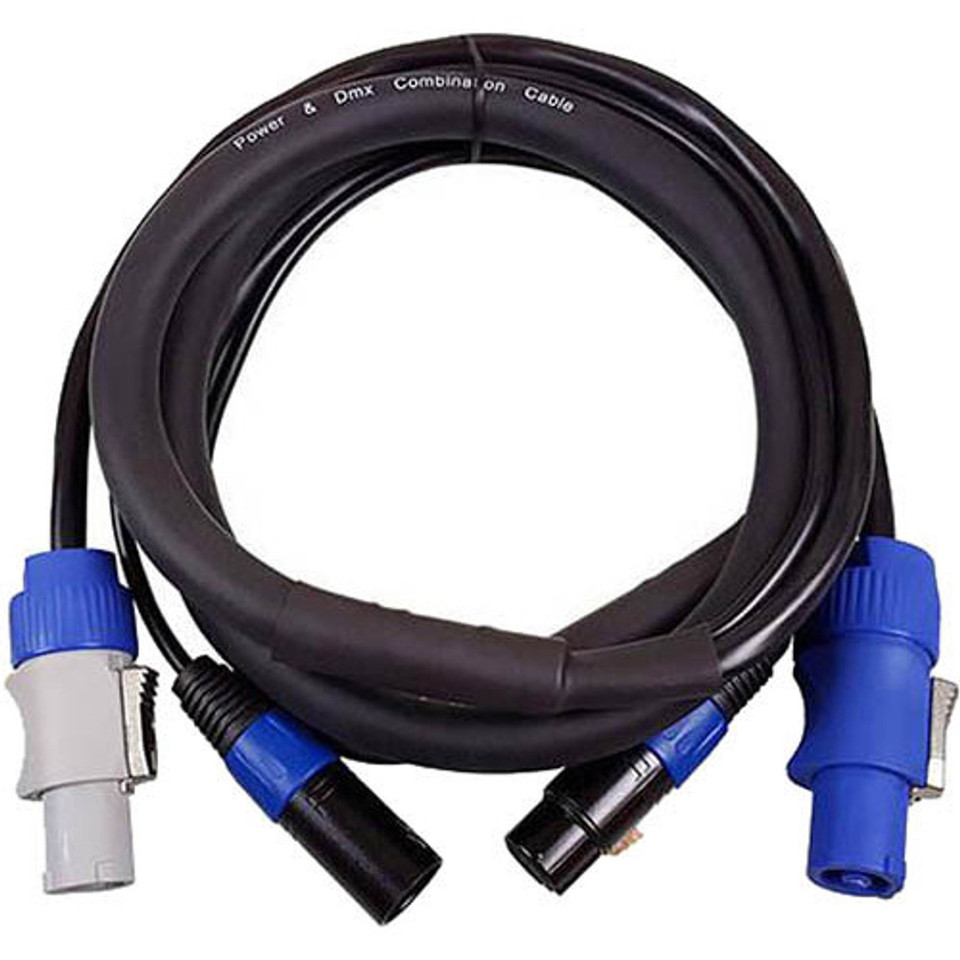

Make your lighting setup simpler and cleaner with Cool Cables powerCON + DMX combo cables. They can replace any set of individual power and DMX extensions with a single neatly wrapped cable. They come in various lengths, with 3-pin or 5-pin XLR connectors, and can be used to link the power and data of any equipment with DMX and powerCON input/output connections. The power cable features heavy-duty 14AWG wire, and is fitted with powerCON compatible input (blue) to output (white) connectors on either end.
Its DMX cable offers 120 ohm impedance, low capacitance, and a double (foil and braid) shield. On either end of the cable are high quality XLR(M) to XLR(F) connectors. And like all Cool Cables DMX cables, they offer reliable data transfer through their data-specific design and wire that is wrapped 5x tighter than any traditional XLR cable. Finally, both power and DMX cables are encased together in a highly flexible outer jacket with heat shrink.
Features
• Power Cable:
• Heavy-Duty 14AWG
• powerCON® compatible input (blue) connector
• powerCON® compatible output (white) connector
• 3 conductor cord, heavy duty - black
• Maximum amperage: 15 amps
• DMX Signal/Data:
• 3-pin or 5-pin XLR (male/female) connectors, black/blue
• Double shield (foil and braid)
• 120 ohm impedance
• Low capacitance
• Limited lifetime warranty
• Dual velcro straps included with each cable
