Modular microphone system includes aMicroLine condenser microphone element, 9.08" gooseneck and 3-pin flush-mount power module

SKU: AT-ES925ML12/FM3
MSRP: $480.00
MAP: $480.00

Overview

MicroLine Condenser Gooseneck Microphone with 3-Pin Flush-Mount Power Module

ES925ML/FM3

  • Modular microphone system includes a microphone element, gooseneck and power module – each interchangeable with components from other ES Modular Microphones
  • Flush-mount power module and element housing both feature a highly visible, two-state RGB LED status indicator
  • Capacitive touch switch enables local muting of the microphone
  • Power module with 3-pin XLR output mounts unobtrusively in tabletops
  • Designed for professional sound reinforcement and other commercial sound applications
  • Interchangeable condenser microphone elements provide full-range, natural sound
  • Low-profile element provides uniform MicroLine polar pattern with 90° acceptance angle
  • Included isolators provide mechanical dampening of mounting surface vibration
  • Available interchangeable elements permit angle of acceptance from 90° to 360°
  • Small-diameter gooseneck design permits highly flexible positioning
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Includes foam windscreen
  • Available in six lengths

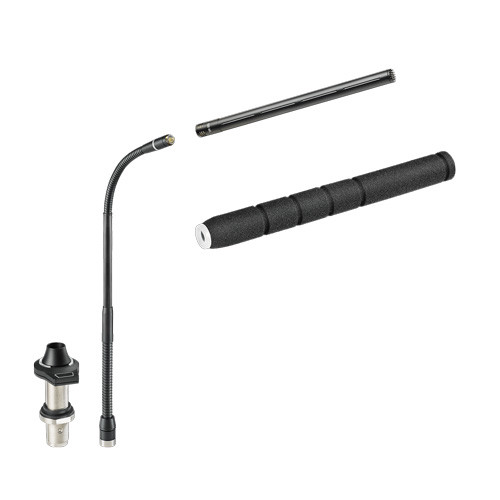

The ES925ML/FM3 is a modular microphone system designed for professional sound reinforcement and other commercial sound applications. It includes a MicroLine condenser microphone element, gooseneck and a 3-pin flush-mount power module.

The ES925ML/FM3 microphone’s low-profile element provides a uniform MicroLine polar pattern with a 90° acceptance angle. It comes with a foam windscreen to protect against plosives. The microphone element attaches to the small-diameter gooseneck, which offers highly flexible positioning while maintaining a well-contoured appearance. The 3-pin flush-mount power module is equipped with a capacitive touch switch that enables local muting of the microphone. The power module mounts unobtrusively in tabletops and comes with isolators that provide mechanical dampening of the mounting surface. Both the power module and the microphone element housing feature a highly visible, two-state RGB LED status indicator. UniGuard® innovations offer unsurpassed immunity from radio frequency interference.

The ES925ML/FM3 is available in the following models and lengths:

  • ES925ML6/FM3: 326.5 mm
  • ES925ML12/FM3: 434.0 mm
  • ES925ML15/FM3: 510.2 mm
  • ES925ML18/FM3: 586.4 mm
  • ES925ML21/FM3: 662.6 mm
  • ES925ML24/FM3: 738.8 mm

Specifications

Element

Fixed-charge back plate permanently polarized condenser

Polar Pattern

Line + Gradient

Frequency Response

30 ~ 20,000 Hz

Open Circuit Sensitivity

-35 dB (17.7mV) re 1V at 1 Pa

Impedance

180 Ω

Maximum Input Sound Level

137 dB SPL, 1 kHz at 1% T.H.D.

Dynamic Range (Typical)

112 dB, 1 kHz at Max SPL

Signal-To-Noise Ratio

71 dB, 1 kHz at 1Pa

Switch

Mic On/Off;
LED color selector

Phantom Power

22-52V DC, 8 mA

Weight

ES925ML6/FM3: 114.2 g;
ES925ML12/FM3: 138.2 g;
ES925ML15/FM3: 143.2 g;
ES925ML18/FM3: 148.2 g;
ES925ML21/FM3: 153.2 g;
ES925ML24/FM3: 158.2 g

Dimensions

ES925ML6/FM3: 326.5 mm (H) x 38 mm (W) x 48 mm (D);
ES925ML12/FM3: 434.0 mm (H) x 38 mm (W) x 48 mm (D);
ES925ML15/FM3: 510.2 mm (H) x 38 mm (W) x 48 mm (D);
ES925ML18/FM3: 586.4 mm (H) x 38 mm (W) x 48 mm (D);
ES925ML21/FM3: 662.6 mm (H) x 38 mm (W) x 48 mm (D);
ES925ML24/FM3: 738.8 mm (H) x 38 mm (W) x 48 mm (D)

Output Connector

3-Pin XLRM-type

Accessories Furnished

Isolator 1 pair; Nut;
Windscreen AT8138a;
Set screw (M2×2 mm) 2 pcs.;
Hex wrench (0.89 mm)
