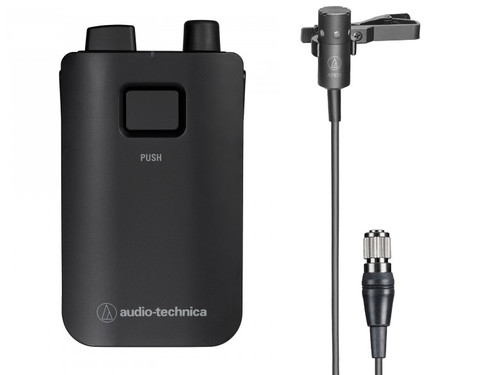

ES Wireless Bodypack Transmitter with CH-style connector and built-in omnidirectional microphone

SKU: AT-ESW-T4101
MSRP: $599.00
MAP: $599.00

Overview

The demand for wireless microphones has grown as a result of the increasing prevalence of videoconferencing and web conferencing. Audio-Technica’s Engineered Sound Wireless Systems is a DECT wireless system that offers simple, smart, and scalable high-quality audio. This system overcomes many challenges of conventional wireless microphones, such as frequency coordination and the limited number of simultaneous microphones.

Operation is incredibly easy for end users, with microphones ready to use by simply removing them from the charging station. At full charge, the batteries offer all-day operation. Installation is also made easy using PoE to power the receiver and Dante audio output capabilities. Wiring is as simple as connecting a single Cat 5e cable to a PoE switch. This helps streamline the installation process, with no need to worry about having to install multiple antennas. System integrators are able to configure detailed settings to meet a wide variety of end-user needs.

Seamless setup and management are controlled via Audio-Technica’s Wireless Manager software, which is capable of managing multiple wireless systems, including UHF wireless systems, from a single screen. In addition, AES256 encryption support comes standard, providing superior security and reliable operation. 

Features

  • Built-in high-quality microphone
  • Transmitter neck strap included
  • Simple single-button operation
  • Lightweight design
  • Long-lasting battery for all-day operation
  • Compact, sweat-resistant cH-type connectors for use with a variety of Audio-Technica microphones
  • Two built-in antennas for stable operation

Specifications

Frequency response (internal microphone)

20 to 20,000 Hz

Modulation mode

A-field:π/2-BPSK

B-field: π/4-QPSK

Input connection (Audio-Technica cH type)

Four pin locking connector:
Pin 1: GND

Pin 2: MIC DETECTION

Pin 3: MIC INPUT

Pin 4: DC BIAS +5 V

Battery

Lithium-ion battery LI-220 (included)

Operating temperature range

-5°C to +45°C

Battery life

25 hours (1)

Dimensions

56 mm (W) x 23.5 mm (D) x 90 mm (H)

Weight (with battery)

112.3 g
