Overview

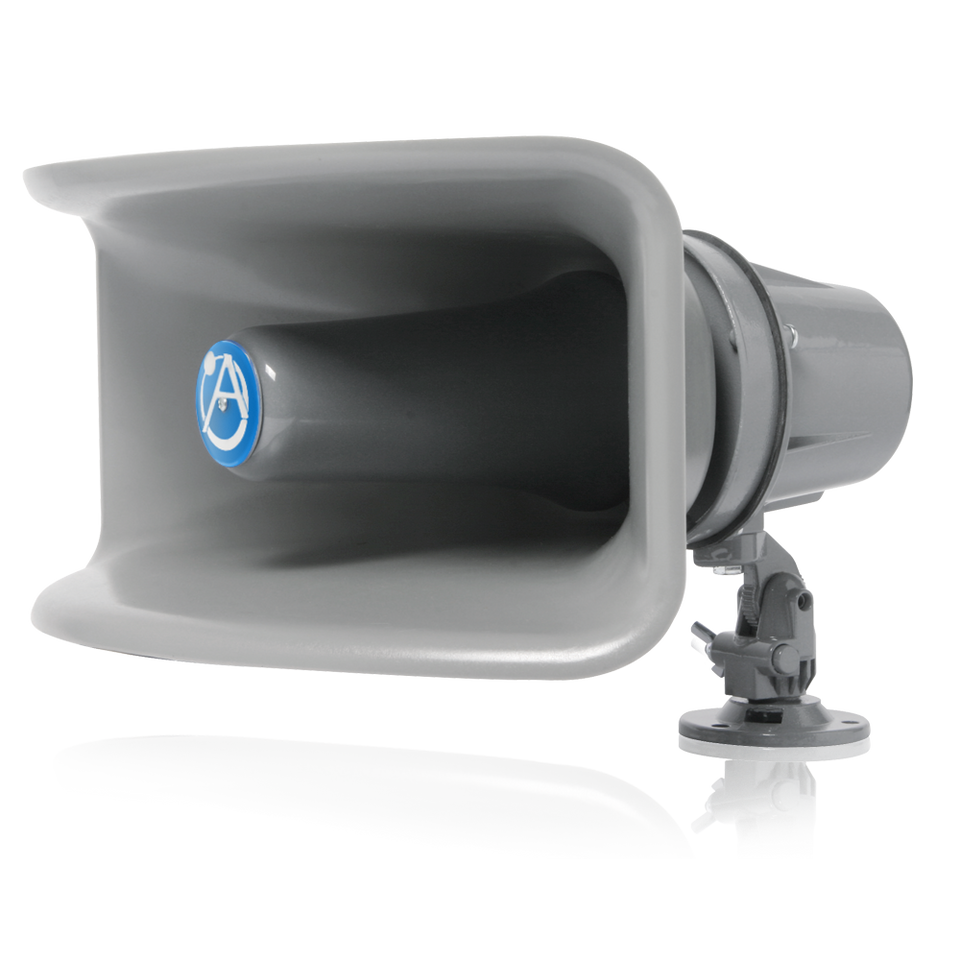

APC-30T is a high-power 30 watt speaker with extended low frequency response. Unit is equipped with a wide-angle molded plastic bell for sound directivity. Transformer includes a screwdriver-adjust power selection with a 45 ohm tap for intercom and talk-back use.
For mounting, the APC-30T features the Omni-Purpose® bracket for vertical/horizontal positioning with provisions for surface/strap mounting to pillars and I-beams.
Finished in grey baked epoxy.
Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.
Features
- High-Powered Compression Driver Projects Superior Voice and Tone Signaling
- Includes a 25, 70.7, 100V Transformer with a 45-Ohm Tap
- One-Step Method of Adjusting Bell from Horizontal to Vertical Positioning
- Wide-Angle Sound Dispersion for Maximum Horizontal Pattern Coverage
Specifications
| Frequency Response | 300Hz - 12kHz |
| Sensitivity | 109dB |
| Power Taps | 2, 3.8, 7.5, 15, 30W @ 70.7V |
| Dispersion | 70° x 95° |
| Power Rating | 30 Watts |
| Height | 8 1/4" (20.96 cm) |
| Width | 14 3/8" (36.51 cm) |
| Depth | 12 7/8" (32.70 cm) |
| Shipping Weight | 9.00 lbs (4.08 kgs) |
| Color | Pantone 430 C - RAL 7000 |
| Operating Temperature Range | -40C to 70C |
| Warranty Period | 60 months from date of purchase |
