Overview

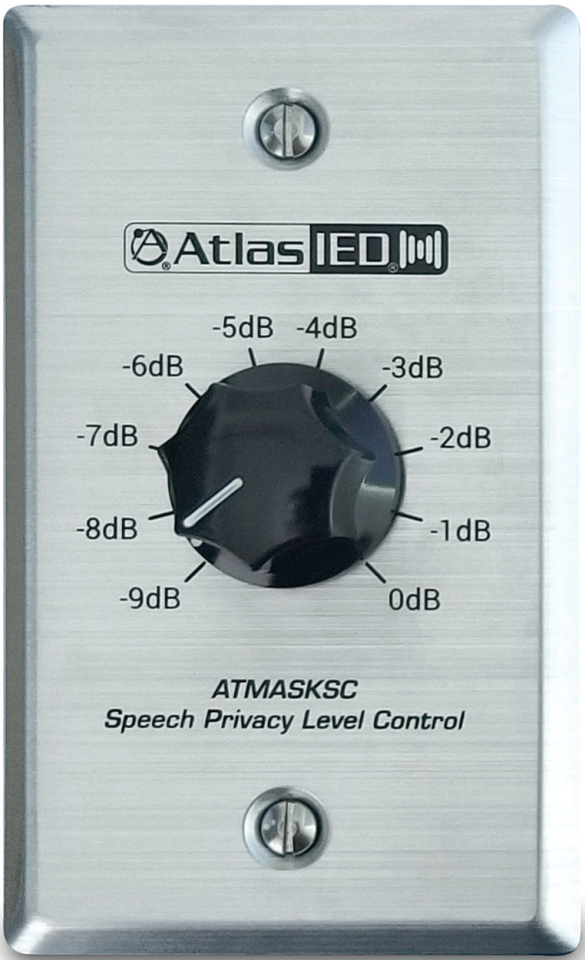

The AtlasIED ATMASKSC is specially designed to be used with the M1000A35 Self-Contained Active Masking System where precision adjusting of level control is required. It employs a ten-position, non-shorting rotary switch without end-stop. The attenuation rate is 1dB per step from 0dB to -9dB.
Features
- Designed to be used with M1000A35
- 1dB Steps for Precision Sound Masking Settings
- 2 or 3 Conductor Interface Connection
- Works with other 10k Ohm VCA 2 or 3 Conductor Systems
- Matches Stainless Steel Standard Volume Wall Plate
- Maximum Tested Distance 500ft, 22-Gauge Wire
Specifications
| System Type | Wall Plate Mounted Precision Stepped Attenuator for M1000A34 |
| Total Attenuation | 0dB to -9dB (it does not turn OFF the audio) |
| Impedance | 10k Ohm |
| Plate Size | 1 gang |
| Plate Type | Stainless Steel |
| Dimensions (HxWxD) | 2.27" x 4.5" x 1.6" (69.85mm x 114mm x 41.3mm) |
| Weight | 0.16lbs (0.074kg) |
| Safety Listed | UL2043 when used with the M1000A35 |
| Warranty Period | 60 months from date of purchase |
