Overview
The ATM Flyware PoleStar PM-24-6UP-G UniFrame is a complete mounting solution for outdoor loudspeakers. Its design combines the attributes of the PoleStar stainless “a-la-carte” version into just two models produced in steel and then galvanized to an outdoor weather rating.
The UniFrame reduces the amount of parts required for the job site and saves installation time by combining the support arm and the pole adapter together into one assembly. In addition, two stainless steel band kits are included, which only require a socket set to assemble.
The support arm is welded together for extra strength and durability. Each arm includes three attach point mounting holes at the end of the arm that allow the installer to select the desired distance between the loudspeaker and the pole.
Accommodates pole diameters from 6” (152 mm +) diameter poles and columns and larger.
Features
- Uni-Frame assembly adds strength and reduces installation time.
- Longer pole interface increases structural capacity.
- Rugged outdoor galvanized finish to ASTM A123 and ISO1461 specifications.
- Three arm mounting points to accommodate all speaker models.
- Angled brace increases structural stability during severe weather conditions.
- Support arm may be oriented up or down for installation flexibility.
- Dual adapter may be secured to the Uni-Frame for a three-way installation.
Note:

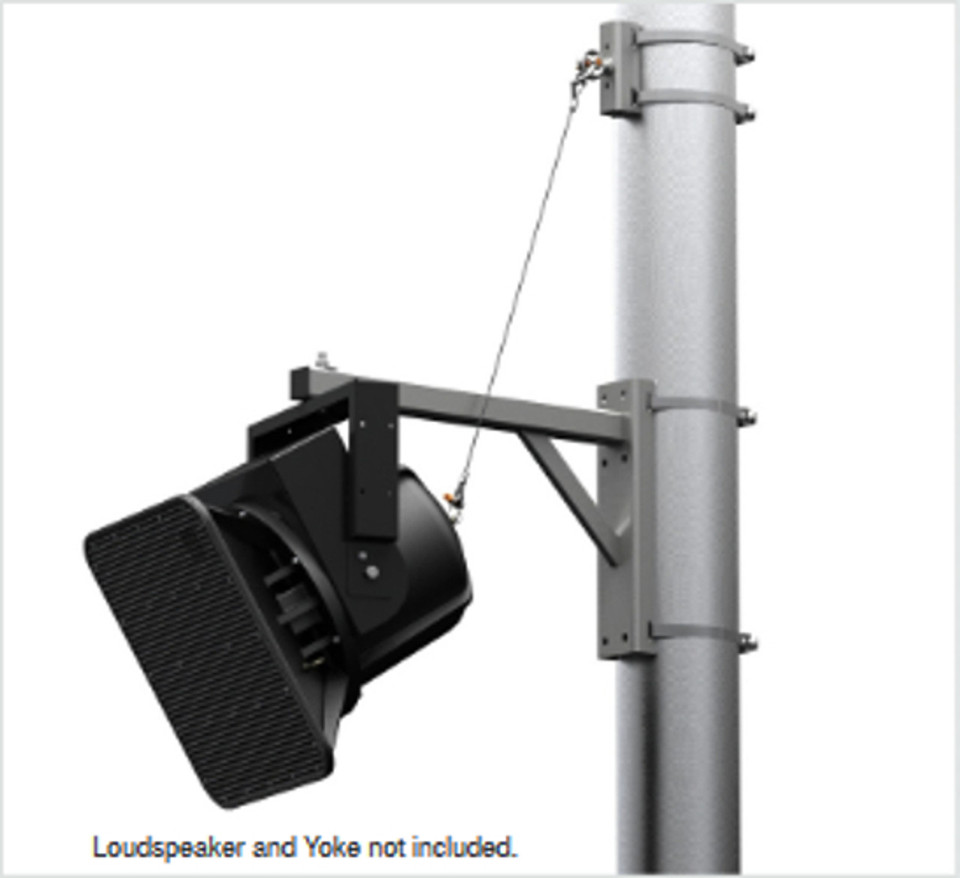

The speaker, speaker yoke, and pole shown in the picture above are there for illustrative purposes and are NOT included.
Specifications
- Material: Steel Alloy
- Finish: Galvanized
- Color: Silver
- Band Kit Included: For poles up to 25” in diameter
- Working Load Limit: 100 lb. (45.5 Kg) per mounting point Maximum of three speakers
- Design Factor: 10:1
- Weight: 16.4 lb. (7.5 Kg)
- Shipping Weight: 18 lb. (8.2 Kg)
- Pack Count: 1 kit per carton including 90” band
