Overview

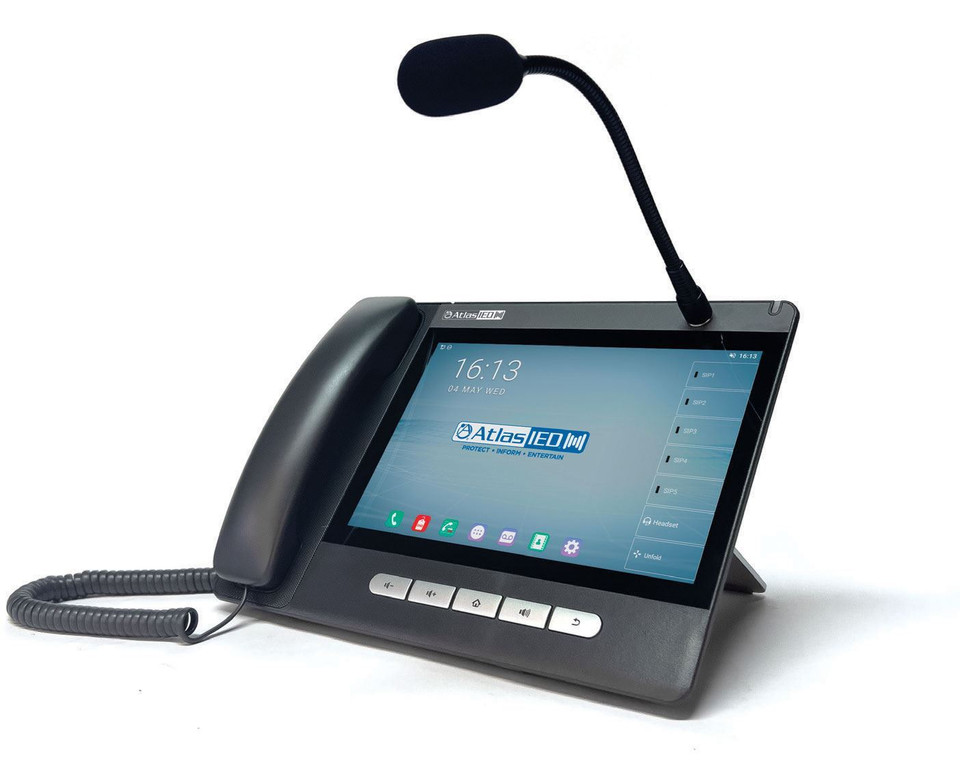

The AtlasIED IP-CONSOLE-GH is a VoIP communications console equipped with a large 10.1-inch color touch screen, gooseneck microphone, handset and built-in speaker that is used in the IPX Unified Communication ecosystem. The AtlasIED IP-CONSOLE-GH registers directly with Singlewire's InformaCast® notification application, to serve as the systems network Administrative Display Phone or Master Paging Station.

The gooseneck microphone, built-in speaker and graphical user-friendly interface allow the operator to select any or all zones for live day-to-day announcements or a single zone for two-way communication. The operator can also choose to select a single zone and use the handset for private intercom sessions.

The IP-CONSOLE-GH supports configuring up to 112 virtual DSS (Direct Station Selection) keys each key with its own custom color and naming scheme to match the InformaCast® Fusion Command Center’s button design that is synced to user defined color styles for InformaCast® normal, warning and emergency notifications.

Its large 10.1-inch color touch screen graphical, user-friendly, interface makes it easy to navigate through the configured virtual DSS (Direct Station Selection) keys and launch InformaCast’s programed critical alerts, manual bells, pre-recorded and scheduled events for fast and clear communications with AtlasIED's IPX Series speakers.

The AtlasIED IP-CONSOLE-GH can also register as a SIP phone directly to a SIP server or VoIP Communications Manager including on-premise and hosted infrastructure call platforms and supports 20 SIP lines.

Features

• Network Features

  • Dynamic or Static IP Address
  • IEEE 802.3 10/100/1000 Base-T Ethernet
  • IEEE 802.3af Compliant
  • Dual Bridged Port for PC Bypass
  • Built-in 2.4G / 5G Wi-Fi
  • IPv6

• Audio Codec Support

  • G.711 u-law / a-law (16kbit/s)
  • G.722 Wideband Audio (64 kbits/s), Opus

• Video Codec Support

  • H.264/H.265 (optional) 780P/1080P

• Auto Registration

  • SLP or DNS-SRV for Singlewire Applications
  • AtlasIED Discover tool

• Static Configuration

  • HTTP GUI for Static Configuration

• Additional Features

  • 10.1" 1280x800 color touch screen
  • Programmable 112 one-touch virtual DSS keys
  • Supports 20 SIP lines
  • Compatible with most major call platforms (e.g., Asterick®, Broadsoft®, 3CX®, Metaswitch®, Elastix®, Avaya®, and others)
  • Built-in Bluetooth 5.0
  • Direct to IPX communication using multi-cast
  • On-board Gooseneck Mic, Handset, and conference speaker
  • Stand with 2 adjustable angles of 40 and 50 degrees
