Overview

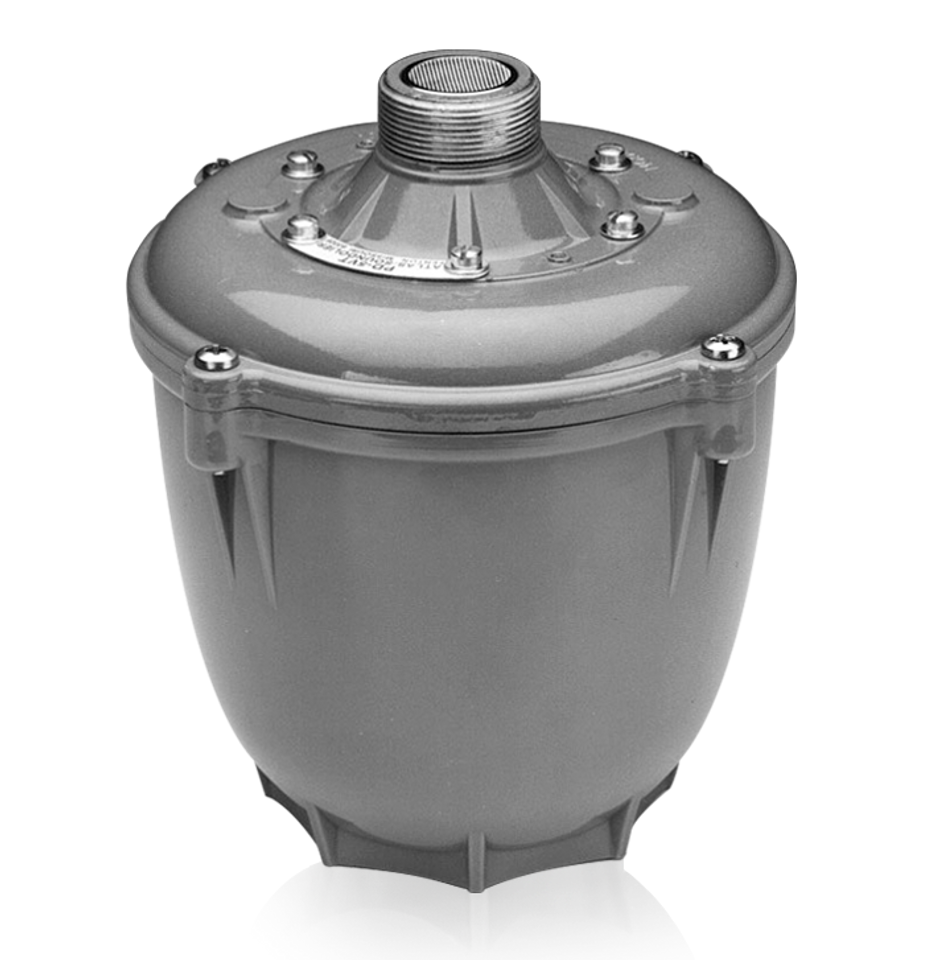

The PD-60AT is a fully environment-resistant 60 watt driver for indoor or outdoor applications recommended for use in expansive and/or high ambient sound-level areas. Unit features a sound chamber, phasing plug and magnetic-structure components machined to optimum tolerances. Plane wave frequency response is 100Hz - 3.7kHz.
The PD-60AT features a built-in varnish impregnated, multi-tap 70 volt line-matching transformer. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover which provides strain relief for the interconnecting cable. The PD-60AT is terminated in standard 1 3/8"-18" thread male couplings for use with screw-on horns.
Learn more about the importance of protecting compression drivers from low frequency damage and view the TSD-HF11 unit designed specifically to protect them from low frequency damage.
Features
- Driver Provides Accurate Sound Reproduction, Optimum Intelligibility and Dependable Performance
- Perfect for High Power 70.7V Public Address Systems
- Use with CJ-46 BIA100 and DR Series Horns
Specifications
| Frequency Response | 100Hz - 3.7kHz |
| Sensitivity | 112.7 (avg) 100 - 3,700 Hz |
| Power Taps | 2.5, 5, 10, 20, 40, 60W @70.7V |
| Height | 6 7/8" (17.46 cm) |
| Diameter | 6 3/8" (16.19 cm) |
| Shipping Weight | 8.66 lbs (3.93 kgs) |
| Warranty Period | 60 months from date of purchase |
