Overview

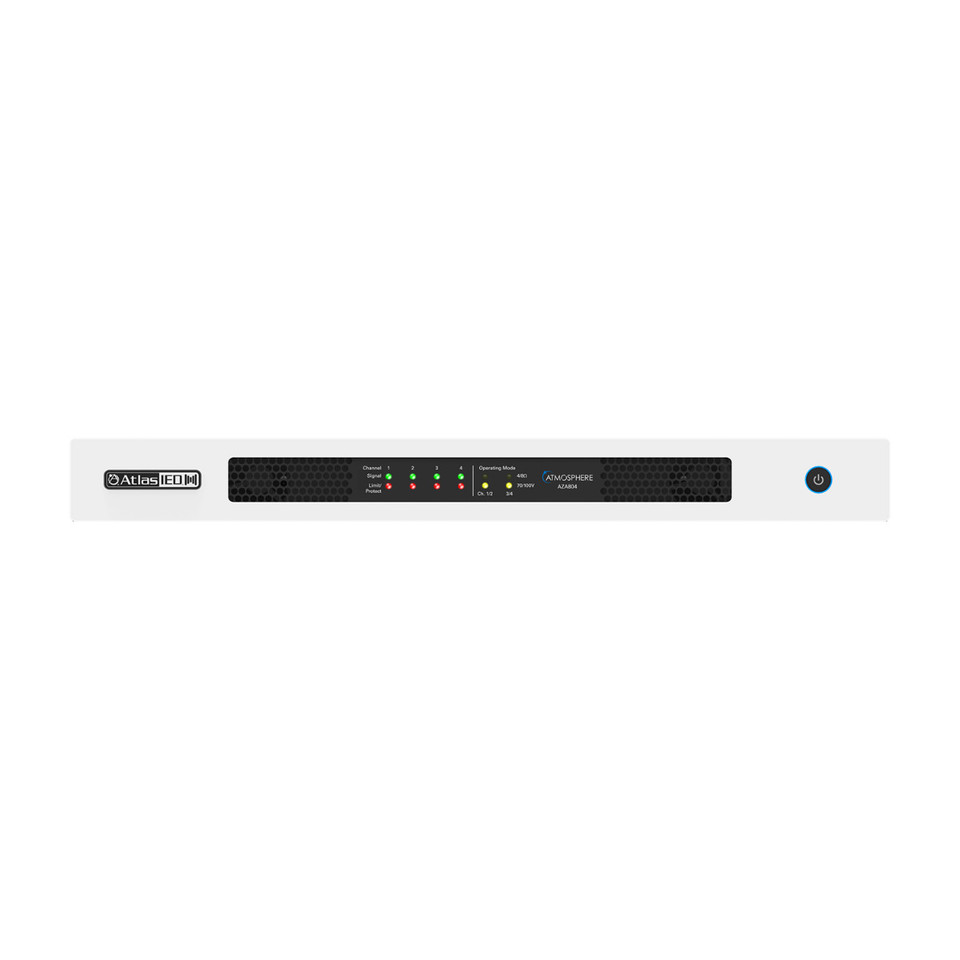

The AtlasIED Atmosphere AZA804 four-channel amplifier is designed to interface with the Atmosphere family of products, such as the AZM series of processors. The AZA amplifiers can be configured in pairs to deliver up to 100W per channel into both low and high impedance speaker loads (4Ω/8Ω/70V/100V).
The AZA804 is ready to use out of the box in four-channel, 70V mode, with no additional configuration or network connectivity required, making them easily paired for use with AtlasIED Atmosphere signal processors.
Features- 70V, 100V, 8Ω, or 4Ω functionality, configurable in channel pairs
- Up to 200W per channel (4 x 200W)
- Four (4) balanced inputs
- Web interface to change output modes and additional monitoring/processing
- Optional Accessory Card Slot for a Four-Channel Danteâ„¢ Receiver (DPA-DAC4)
| Power Output | 4 x 200-Watts @ 70.7V |
| Power Output | 4 x 200-Watts @ 100V |
| Power Output | 4 x 150-Watts @ 8Ω |
| Power Output | 4 x 100-Watts @ 4Ω |
| Power Output | 2 x 200-Watts @ 70.7V, 2 x 150-Watts @ 8Ω |
| Power Output | 2 x 200-Watts @ 100V, 2 x 100-Watts @ 4Ω |
| Amplifier Topology | Class AB Switching Hybrid -BASH |
| Input Sensitivity | 750mV Balanced, 0dBU |
| Input impedance | Balanced 40k |
| Maximum Input Signal | +14dBU Inputs 1-4, +7dBU Inputs 5-8 with Danteâ„¢ |
| THD | 1% @ Rated Output |
| Frequency Response | 20Hz - 20kHz (DSP Filters Set to Flat) |
| Signal to Noise Ratio | >100dB Below Rated output (A-Weighted) |
| Crosstalk | 73dB @ 1kHz |
| Voltage | 110V - 120V & 220V - 240V Auto Switch Over, 50/60Hz |
| Rack Units | 1 |
| Height | 1.75" (45mm) |
| Width | 19" (483mm) |
| Depth | 15.5" (394mm) |
| Weight | 13 lbs. (5.92kg) |
| Warranty Period | 36 months from date of purchase |
