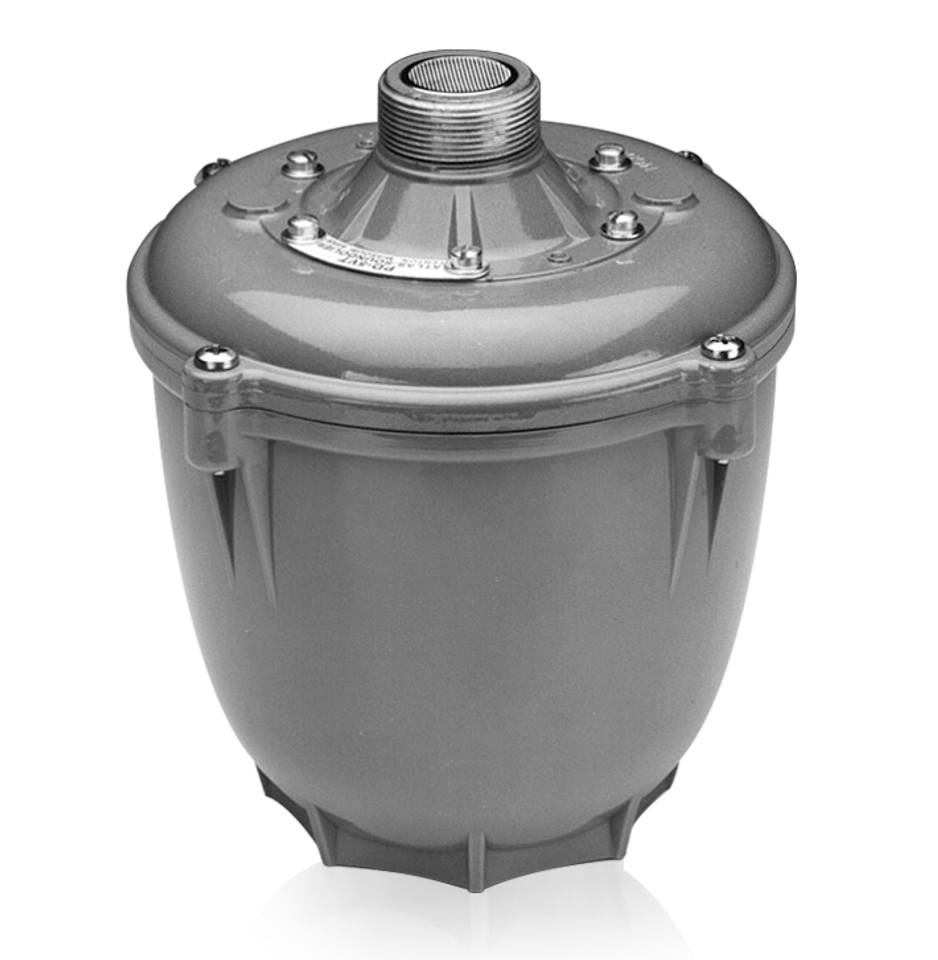

60-Watt 16O Compression Driver for Large Format Horn Speakers

SKU: AS-PD60A
MSRP: $279.99
MAP: $224.99

Overview

Model PD-60A is a fully environment-resistant 60 watt driver for indoor or outdoor application recommended for use in expansive and/or high ambient sound-level areas.

Unit features magnetic-structure components machined to optimum tolerances, 2" voice coil and a plane wave frequency response of 100Hz - 3.7kHz.

Model PD-60A provides screw-type terminals for matching direct to the 16 ohm voice coil impedance. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover which provides strain relief for the interconnecting cable. The PD-60A is terminated in standard 1 3/8"-18" thread male couplings for use with screw-on horns.

Learn more about the importance of protecting compression drivers from low frequency damage and view the TSD-HF11 unit designed specifically to protect them from low frequency damage.

Features

  • Driver Provides Accurate Sound Reproduction, Optimum Intelligibility and Dependable Performance
  • Perfect for High Power Public Address Systems
  • Use with CJ-46 BIA100 and DR Series Horns

Specifications

Frequency Response 100Hz - 3.7kHz
Sensitivity 112.7 (avg) 100 - 3,700 Hz
Power Rating 60W
Height 6 7/8" (17.46 cm)
Diameter 6 3/8" (16.19 cm)
Shipping Weight 8.66 lbs (3.93 kgs)
Warranty Period 60 months from date of purchase
