Overview
Problem: You need to mix an audio source (phone, video camera / player) with a synth and the line output of a bass amp and send it all to a computer or AV recorder.

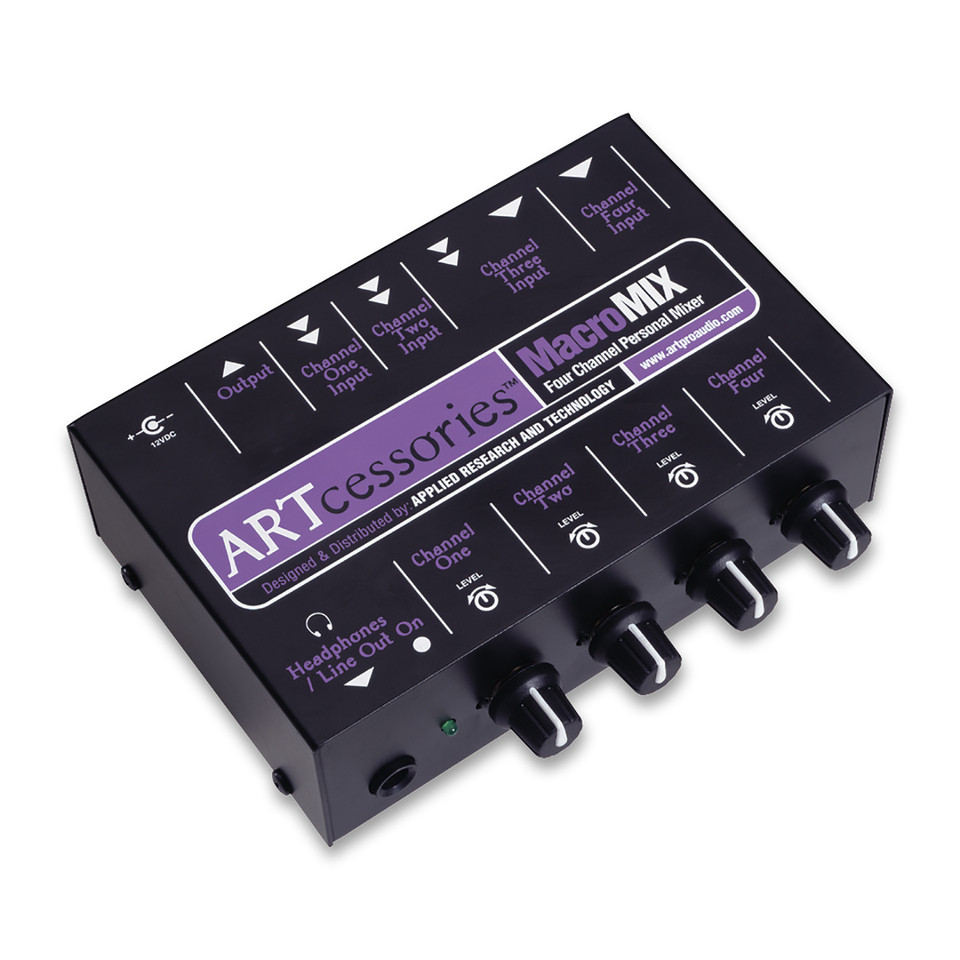

Solution: Connect a MacroMix between your audio sources and the computer or AV recorder. Levels can be mixed and monitored by headphones
Key Features
- Four input channels, Ch. 1 and 2 have dual L/R RCA inputs, with Ch. 3 you have a choice of one 1/4” or dual L/R RCA inputs and Ch 4 has a 1/4” unbalanced input.
- Four Level controls, one for each channel
- Dual L/R RCA Output connectors
- 1/4” Line Out/Stereo Headphone output jack
- Active preamplification and mixing circuitry
Specifications
- Signal To Noise Ratio: > 90dB
- Maximum Gain: +40dB
- Input Impedance: 10K Ω
- IMD (SMPTE): <0.008%
- Power Requirements: 12V DC (Adapter included)
- Total Harmonic Distortion: <0.008%
- Dimensions: 5.625×3.75×1.75 inches (143mm x 92mm x 45mm)
- Weight: 1.6 lbs (725g)
