Overview

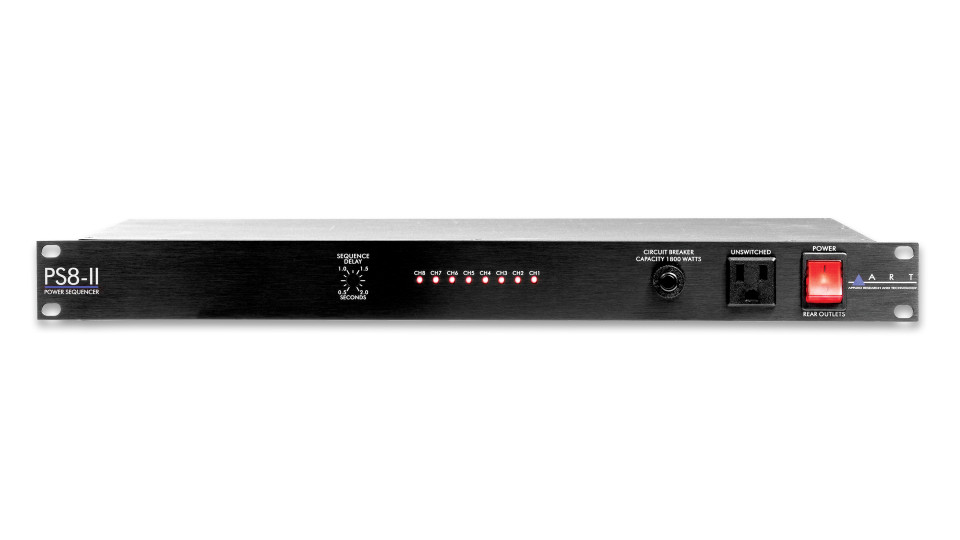

The ART PS8-II provides controlled power sequencing to eight rear AC outlets. Each output’s power up / power down is delayed by a fixed amount determined by the front panel user definable Sequence Delay control. This allows you to control the power up and down sequence in a system to smooth out inrush currents and minimize turn-on transients that may damage sensitive equipment.
PS8-11 Applications:
- Full-featured power conditioner and fast acting breaker
- EMI and RFI filter, as well as offer surge and spike protection to protect your system
- By design it is ideal to sequence and therefore protect a wide range of equipment including sensitive tube preamps, powered speakers, large displays, or digital systems
Key Features
- Adjustable Sequence Delay Range from 0.5 to 2.0 Seconds per Output
- Eight Individually Sequenced Outputs with Front Panel LED Indicators for Each
- Rear Mount Remote Control Terminal Block for Remote Sequence Control
- Front Panel Unswitched and Unregulated Output
- 1800 Watt Total Power Capacity
- Front Panel Master Breaker and Power Switch
- EMI and RFI Filtering
- Surge and Spike Protection
Specifications
| Power Capacity | 1800 W |
| Maximum Load | 15 Amps / 1800 W (@ 120 VAC) |
| Outlets | 8 x Rear Mounted Individually Sequenced Outlets, 1 x Front Mounted Unswitched |
| Delay Time | 0.5 to 2.0 Second Variable Pot |
| Remote Switch | On/Off Function |
| Remote Terminal | Rear Mounted 4-pin Euro Block Connector |
| Line Filtering | RFI / EMI |
| Power Requirements | USA – 105 to 125 VAC / 60 Hz (Export units configured for country of destination) |
| Dimensions | 1.75″H x 19.0″W x 11.5″D (165mm x 482mm x 292mm) |
| Weight | 9.2 lbs (4.2 kg) |
