Overview

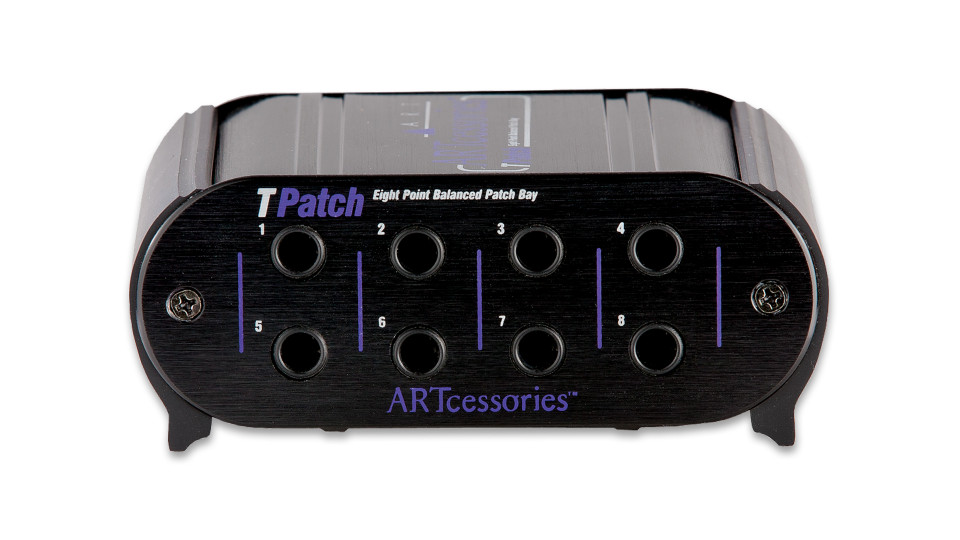

The ARTcessories TPatch is a compact 8-point balanced patchbay that organizes your cables into a convenient central location on your studio desktop. Designed for maximum flexibility, the TPatch has 1/4-inch TRS phone connectors user selectable normal and half-normal modes.
The compact black-anodized all aluminum case and it’s passive design allow the TPatch to provide years of trouble free service.
Key Features
- Eight Points of Balanced Direct Signals
- Four Channels of Linked Input/Output Pairs
- Switchable Half Normal And Normal Modes of Operation (With Through Type Connections)
- 1/4-inch TRS Phone Jack Connectors
- Rugged Extruded Aluminum Case
Specifications
- CMRR: > -90dB (typical)
- Connectors: 1/4-inch TRS Balanced Phone Jacks
- Isolation: > -80dB (typical)
- Dimensions: 1.85″H x 4.6″W x 3.9″D (47mm x 117mm x 99mm)
- Weight: 0.84 lbs (0.38 kg)
