Overview

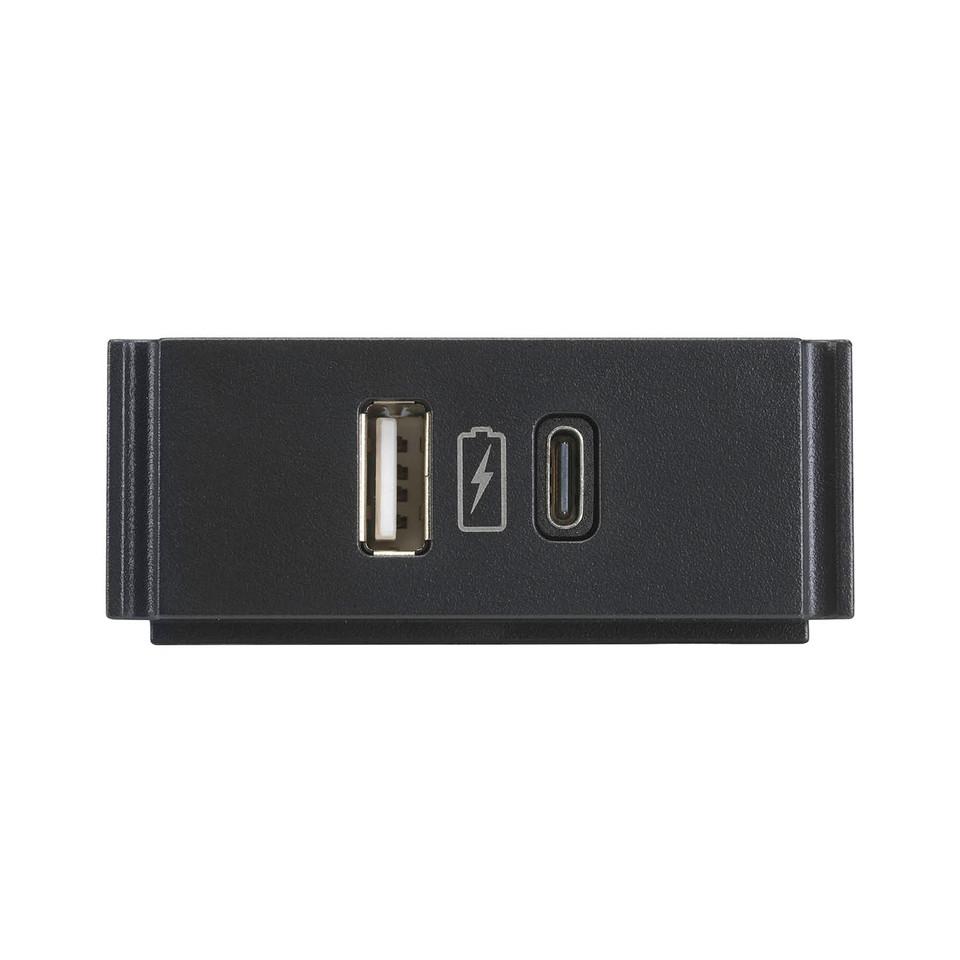

The AMX HPX-USBC-US65 module provides both a USB-C and a USB-A connection with charging capability to the HydraPort® chassis. The power symbol on the module makes it easy for users to identify that power is provided. The HPX-USBC-US65 includes a two-port power supply with US-style, Type A plug capable of providing up to 65W over USB-C, and up to 30W over USB-A.
Common Applications
Many modern laptops and mobile devices leverage USB-C connections for every signal type including video, audio, data, and power. The HPX-USBC-US65 provides both a USB-C port and a USB-A port which can provide power to charge any connected device.
Features
- USB-C Charging Port – USB-C port capable of delivering up to 65W of power when connected to included power supply
- USB-A Charging Port – USB-A port capable of delivering up to 30W of power when connected to included power supply
- Power Supply Included – Included two-port power supply with US-style, Type A plug capable of providing up to 65W over USB-C, and up to 30W over USB-A.
Specifications
| Dimensions | 1 HydraPort Unit |
| Product Weight | 1 lb. (0.45 kg) |
| Front Panel Components | One (1) USB-C Port (65W max with included power supply) |
| Integrated Cable | USB Cables: (2) USB cables 6‘ (1.83 m) - connect the module to the USB Ports on the included power supply |
| Included Accessories | 65W power supply for US outlets |
