Overview
The AMX HPX-USBC-100 module provides both a USB-C and a USB-A connection with charging capability to the HydraPort® chassis. The power symbol on the module makes it easy for users to identify that power is provided. The HPX-USBC-100 is compatible with USB-C PD 3.0 power supplies up to 100W over USB-C, and up to 30W over USB-A. Power supplies not included.
Common Applications
Many modern laptops and mobile devices leverage USB-C connections for every signal type including video, audio, data, and power. The HPX-USBC-100 provides both a USB-C port and a USB-A port which can provide power to charge any connected device.
Features
- USB-C Charging Port – USB-C port capable of delivering up to 100W of power when connected to a compatible power supply
- USB-A Charging Port – USB-A port capable of delivering up to 30W of power when connected to a compatible power supply
Specifications
| Dimensions | 1 HydraPort Unit |
| Product Weight | 0.35 lb. (0.16 kg) |

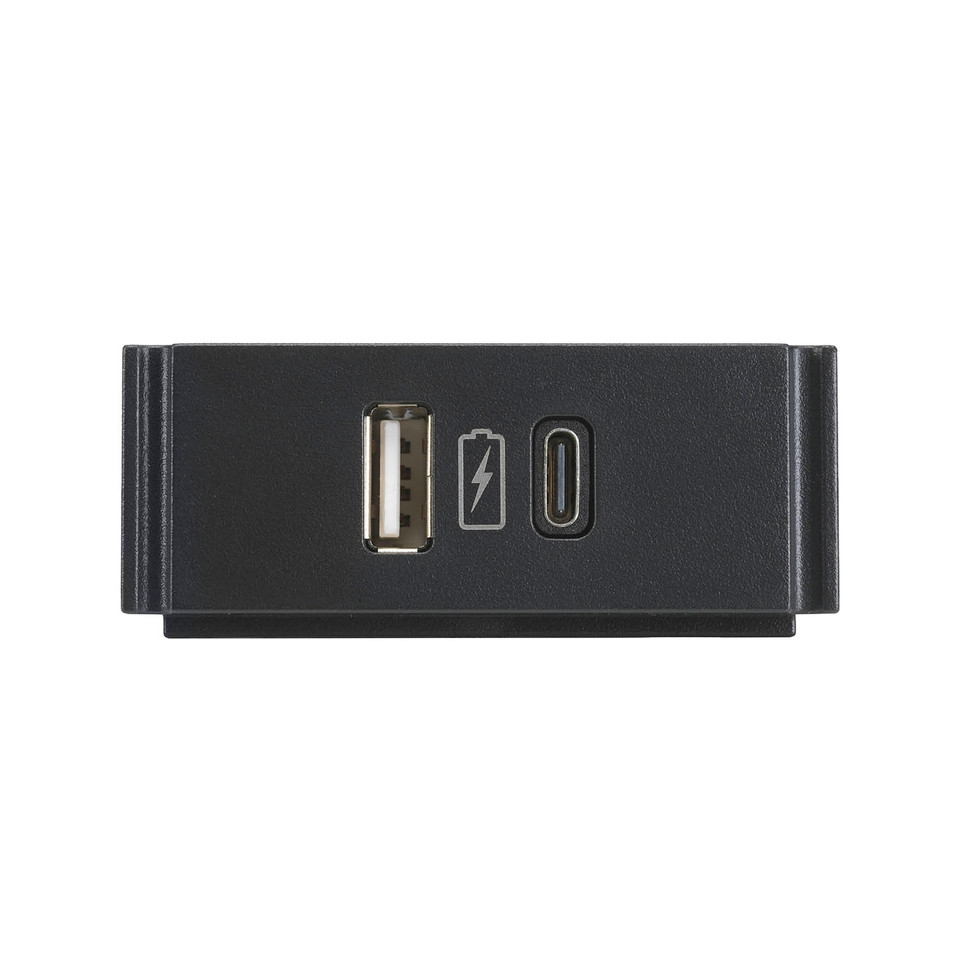

| Front Panel Components | One (1) USB-C Port (100W max) One (1) USB-A port (30W max) |
| Integrated Cable | USB Cables: (2) USB cables 6‘ (1.83 m) - connect the module to the USB Ports on the user supplied power supply |
| Included Accessories | n/a |
