Overview

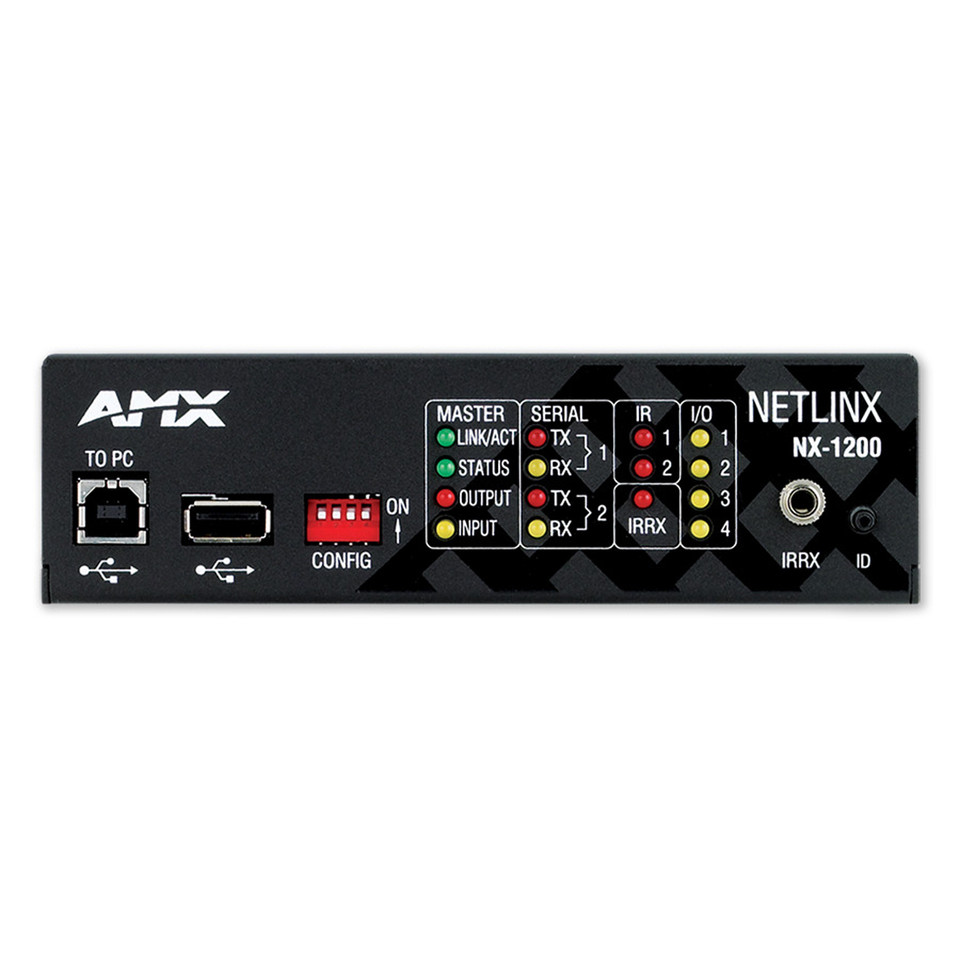

The NX-1200 / NetLinx® NX Integrated Controller is a programmable network appliance specifically designed to control AV and building technology using multiple analog and digital formats. The NX-1200 provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features. The NX-1200 is designed to control and automate a variety of devices in single rooms or multiple small rooms and is capable of supporting devices with a variety of communication formats.

Features

• IPv6 – Supports Internet Protocol version 6 (IPv6), the communications protocol that provides an identification and location system for computers on networks and routes traffic across the Internet
• IEEE 802.1X – Supports IEEE Standard for Port-based Network Access Control with the ability to grant or deny network access to devices wishing to attach to a LAN based on credentials tied to the device rather than to a user
• X.509 Certificate Services – NX supports customer-provided certificates for access to protected networks
• Full LDAP Integration – Supports multiple user-defined login groups for accessing the master, as well as provides an AMX programmer the capability to require network login to access certain areas of the touch panel
• High Performance Architecture, Flexible Programming Platform (RPM, NetLinx and Java) – Easily scalable to support a wide range of applications for today and tomorrow
• Full Line Compatible (Backwards and Cross-Compatibility) – Standardized port numbers and new configuration import/export tools mean fewer coding changes
• TLS / SSH Client – Provides NetLinx programmers the ability to manage secure port TLS and SSH communications with a remote device or server
• Cryptographic Support – In accordance with FIPS 140-2, a U.S. government computer security standard used to accredit cryptographic modules for the protection of sensitive or valuable data
• Network Syslog – Supports standard device logging to a syslog server
• Enhanced Diagnostics On Serial and IR Ports – Provides real time error feedback when Serial and IR ports are disconnected or improperly wired
• File Import / Export From USB Drive – Backup and restore configuration data, program files, and update firmware from a standard USB flash drive
• Hardware / Software Built for 24/7/365 Operation – Provides outstanding reliability and improved diagnostics
• Ultra-Fast 1600 MIPS processor
• 512 MB Onboard RAM
• 1 M Non-Volatile Memory
• 4 GB SDHC FLASH Memory
• 1 RU x 1/3 Rack Space
• 1 AXLink Interface
• 1 10/100 LAN Interface
• 4 Digital I/O Ports
• 1 RS232/422/485 Port
• 1 RS232-Only Port
• 2 IR/Serial Output Ports
• 1 IR Receiver Port

Specifications

• Dimensions (HWD): 1 11/16” x 5 13/16” x 5 1/8” (42.16 mm x 147.32 mm x 130.81 mm)
• Weight: 1.6 lb. (.726 Kg)
• Memory: Memory Card: 4 GB SD, NVRAM: 1 MB, DDRAM: 512 MB, Note: Supports external USB Solid State Drives
• Power Consumption: Active Power Consumption: 3 W
• AxLink Port: (1) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices
• AxLink Indicator: (1) AxLink LED (green) indicates the state of the AxLink port
• RS-232/422/485 Ports: (1) 10-position 3.5mm Screw Terminal, NetLinx Port 1, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
• RS-232 Port: (1) 5-position 3.5mm Screw Terminal, NetLinx Port 2, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
• Serial Indicator: (2) sets of LEDs (red/yellow) indicate when serial Ports 1 and 2 are transmitting and receiving data
• IR/Serial: (2) 2-position 3.5mm Screw Terminal, 2 IR Transmit / 1-way Serial ports, NetLinx Ports 11-12, Support high-frequency carriers up to 1.142 MHz, 2 IR/Serial data signals can be generated simultaneously
• IR/Serial Indicators: (2) LEDs (red) indicate when each of the IR/Serial ports (11-12) are transmitting control data
• I/O Channels: (4) One 6-position 3.5mm Screw Terminal, 4-channel binary I/O port for contact closure with each input being capable of voltage sensing, NetLinx Port 22, Channels 1-4
• I/O Indicator: (4) LEDs (yellow) indicate each of the I/O channels (1-4) are active
• IR/RX Ports: (1) 1/8” mini-jack
• IR/RX Indicator: (1) IR RX LED (red) LED lights when IR data is being received via the IR/RX port
