Overview

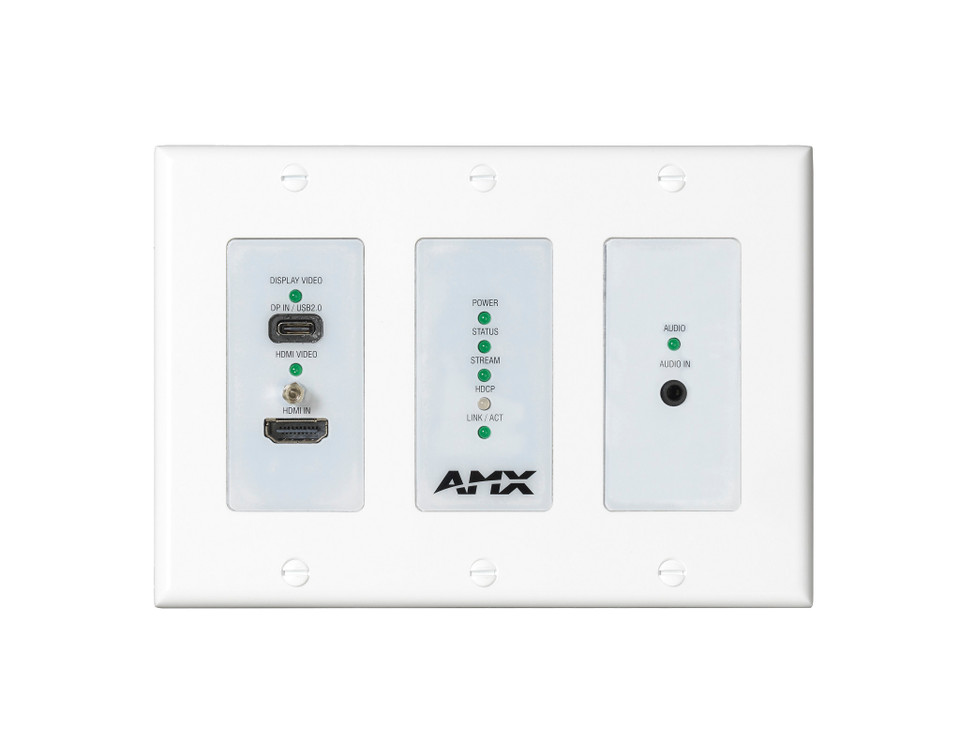

The AMX SVSI NMX-ENC-N2615-WP is a cost-effective, powerfully robust encoder wallplate. It features a high-quality, low-latency 4K60 4:4:4 MWC codec that is ideal for encoding both live video and detailed content in classrooms, meeting spaces, courtrooms, bars, and other applications.
Additional features include transport of full-bandwidth USB 2.0 signals, video preview images viewable from the built-in web interface or from a touch panel, and enhanced support for high-security networks. The wallplate includes an HDMI input and a USB-C input which supports both video and USB 2.0 on a single connector.
These Encoder Wallplates are available in two models:
NMX-ENC-N2615-WP-NA (US Version) and NMX-ENC-N2615-WP-EK (EU/UK Version). Models include both black and white faceplate inserts and wallplate covers to ensure they blend seamlessly within modern decors.
Features
- High-Quality, Low-Latency 4K60 MWC encoding
- Video Preview viewable from the built-in web interface or from a touch panel
- USB 2.0 Transport
- HDMI input and USB-C input that supports both video and USB 2.0
- High security network support and features, including multicast, VLAN tagging and QoS
- PoE+ powered with low-power mode for energy savings
- Open Direct-Control API
Specifications
- Video Inputs: HDMI, USB-C
- Video Outputs: Network video over Ethernet via RJ45 port
- Video Resolution Support: Supports most common resolutions up to 4096 x 2160 - Reference Data Sheet for Specific Resolution Support
- Audio Inputs: Embedded audio on HDMI, USB-C or Analog Stereo (Unbalanced)
- Audio Outputs: Network PCM audio over Ethernet via RJ45
- Ports: USB Type C Socket, HDMI Type A Socket, 3.5mm stereo audio port, Gigabit Ethernet port with PoE support (rear),
- Environmental: Temperature - 32° to 104°F (0° to 40°C)
- Humidity - 10% to 90% RH (non-condensing)
- Heat Dissipation - Up to ~44 BTU/hr
