Overview
The AMX SVSI NMX-DEC-N2622S is a cost-effective, powerfully robust multi-codec decoder in a stand-alone box form factor. It can decode the high-quality, low-latency 4K60 4:4:4 MWC codec output by N2600 encoders that is ideal for streaming both live video and detailed content in classrooms, meeting spaces, courtrooms, bars, and other applications.
High-compatibility, low-bandwidth 1080p H.26x decoding is also included and perfect for distributing video over congested networks.
N2600S models support our Virtual Network USB 2.0 Hub technology. These models not only support transport of full-bandwidth USB 2.0 signals, but also enable USB device signals from up to 4 decoders to be combined and connected to a single USB host on an encoder. A laptop on the meeting room table can now simultaneously connect to multiple remote USB devices such as a camera near the display and an audio DSP in an equipment closet.
Other key features include video preview images viewable from the built-in web interface or from a touch panel and enhanced support for high-security networks.
The NMX-DEC-N2622S supports Dante AV-A, a standard for AVoIP devices created to allow for the interoperability of multiple devices on the network. With Dante AV-A, the NMX-DEC-N2622S is compatible with Dante Controller, Dante Domain Manager, and Dante Director. All signal routing, configuration, and IT-level management for your audio and video devices can now be managed using the same tools.
Compatible encoders include the NMX-ENC-N2612S Encoder, NMX-ENC-N2612S-C Encoder Card and NMX-ENC-N2615-WP Encoder Wallplate. Alternatively, the NMX-DEC-N2622S can decode a Dante AV-A stream generated by any compatible streaming device or an H.26x stream generated 3rd-party devices, N3300 series encoders, N3000 series encoders, or the NMX-WP-N3510 Windowing Processor.
Features
- Dante AV-A
- High-Quality 4K60 MWC decoding with sub-2ms latency
- High-Compatibility, Low-Bandwidth 1080p H.264 decoding
- Virtual Network USB 2.0 Hub
- High security network support and features, including multicast, VLAN tagging and QoS
- PoE+ powered with low-power mode for energy savings
- HControl
- Open Direct-Control API
- UL2043 – Plenum Space certification
Specifications
- Video Inputs: Network video over Ethernet via RJ45 port
- Video Outputs: HDMI
- Video Resolution Support: Supports most common resolutions up to 4096 x 2160 - Reference Data Sheet for Specific Resolution Support
- Audio Inputs: Network PCM or Dante audio over Ethernet via RJ45, HDMI Loop-Out
- Audio Outputs: Embedded audio on HDMI or Analog Stereo (Balanced)
- Ports: +12V 2A DC power input, USB Type A USB 2.0 Device Port, (P0) Gigabit Ethernet port with PoE+ support, (P1) Gigabit

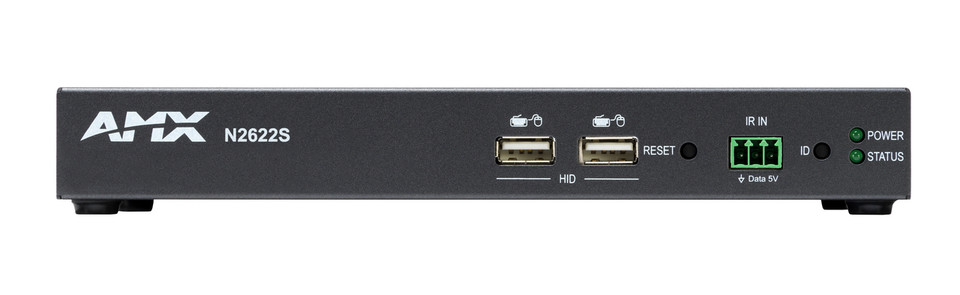

- Ethernet port, (IR) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio) 5-pin 3.5mm screw terminal, HDMI video output, (2) USB Type A HID Device port (front panel), (IR IN) 3-pin 3.5mm screw terminal (front panel)
- Environmental: Temperature - 32° to 104°F (0° to 40°C) Humidity - 10% to 90% RH (non-condensing) Heat Dissipation - Up to ~85 BTU/hr
- Dimensions (H x W x D): 1 1/6" x 7 7/8" x 5" (26.6mm x 200mm x 127mm)
- Product Weight: 2.16 lbs. (Approx. 0.97kg)
