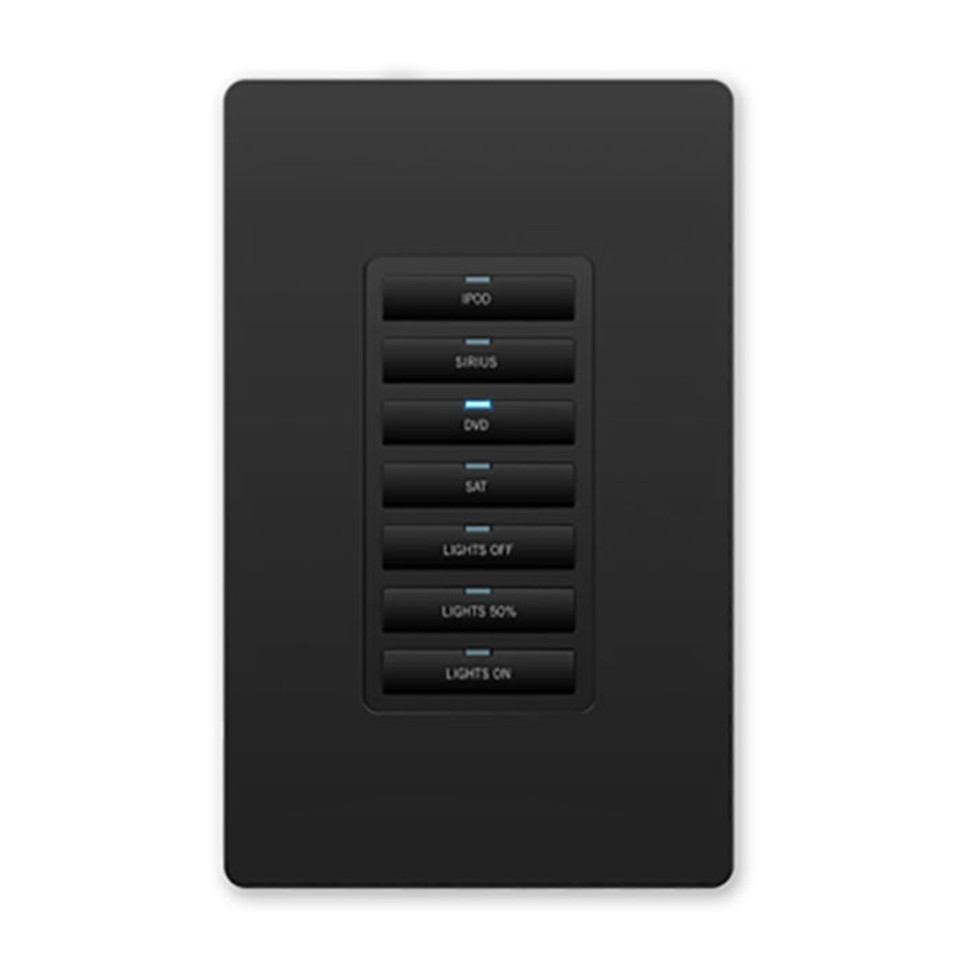

Metreau Keypad 7-button BLACK

SKU: AMX-FG5793-03-BL
MSRP: $451.00
MAP: $451.00

The MET-7E Metreau 7-Button Keypad offers 7 double-width buttons that can be used as an individual keypad or in conjunction with the 7 and 13-Button Metreau Ethernet Expansion Keypads. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.

Common Applications

Great keypad for control of a variety of devices in applications such as hospitals, residences, MDUs and other applications.

Features

  • Connects via Standard Protocols (Ethernet) – Simplifies cabling and installation by minimizing cable runs
  • Daisy Chain up to Three Keypads – Provides the ability to connect up to three keypads using one IP address
  • Fits in Decor Style Wall Plates – Simplifies installation and looks great
  • Blue LEDs Glow to Indicate Button Selection – Improves usability by confirming the user's choice selection
  • Bottom Button Can Act as Single or Two Buttons – Provides added flexibility to the configuration

Specifications

Dimensions (HWD) Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm)
Mounting Mounts into standard decor-style wallplates
Front Panel Components Pushbuttons available in a variety of field replaceable pre-printed buttons with blue LED indicators
Rear Panel Components (1) RJ-45 Ethernet Connector, 10/100, (2) 8-pin, 0.100” (2.54 mm) IDC-type male header
Power PoE (Power over Ethernet), 802.3af, class 0, Power Connector: (1) RJ-45 Ethernet Connector, 10/100
FG Numbers

FG5793-03-WH (White)
FG5793-03-BL (Black)
