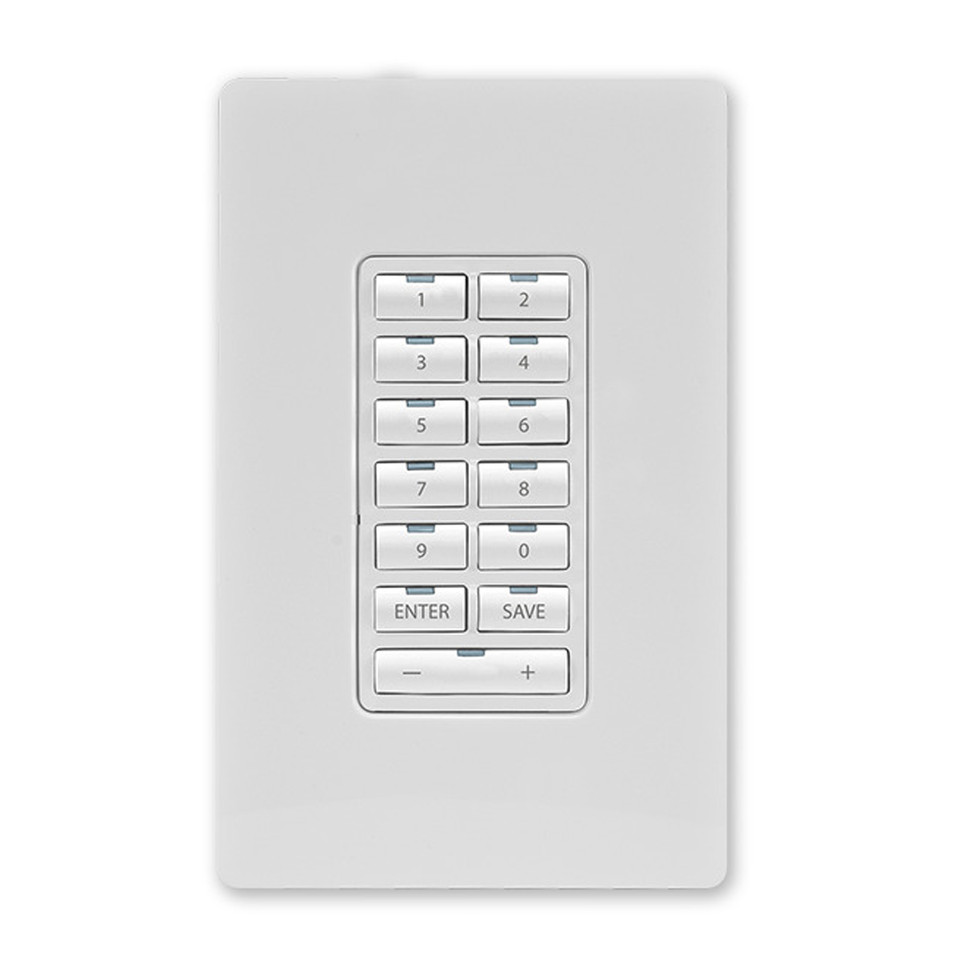

The MET-13E Metreau 13-Button Ethernet Keypad offers 13 buttons (12 single-width and 1 double-width) and can be used as in individual keypad or in conjunction with the 7 and 13-button Metreau Ethernet Expansion Keypads. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.
Common Applications
Ideal for cost effective control for classrooms, conference rooms, kitchens, bathrooms, and other applications requiring simplified control of a variety of connected system devices.
Features
- Connects via Standard Protocols (Ethernet) – Simplifies cabling and installation by minimizing cable runs
- Daisy Chain up to Three Keypads – Provides the ability to connect up to three keypads using one IP address
- Fits in Decor Style Wall Plates – Simplifies installation and looks great
- Blue LEDs Glow to Indicate Button Selection – Improves usability by confirming the user's selection
- Bottom Button Can Act as Single or Two Buttons – Provides added flexibility to the configuration
Specifications
Dimensions (HWD) | Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm) |
Mounting | Mounts into standard decor-style wallplates |
Front Panel Components | Pushbuttons available in a variety of field replaceable pre-printed buttons with blue LED indicators |
Rear Panel Components | (1) RJ-45 Ethernet Connector, 10/100, (2) 8-pin, 0.100” (2.54 mm) IDC-type male header |
Power | PoE (Power over Ethernet), 802.3af, class 0 , Power Connector: (1) RJ-45 Ethernet Connector, 10/100 |
FG Numbers | FG5793-02-WH (White) |
