AMX HPX-MSP-10-SL

Hydraport with 10" touch panel SILVER

SKU: AMX-FG571-09

MSRP: $4,201.00

MAP: $4,201.00

Description

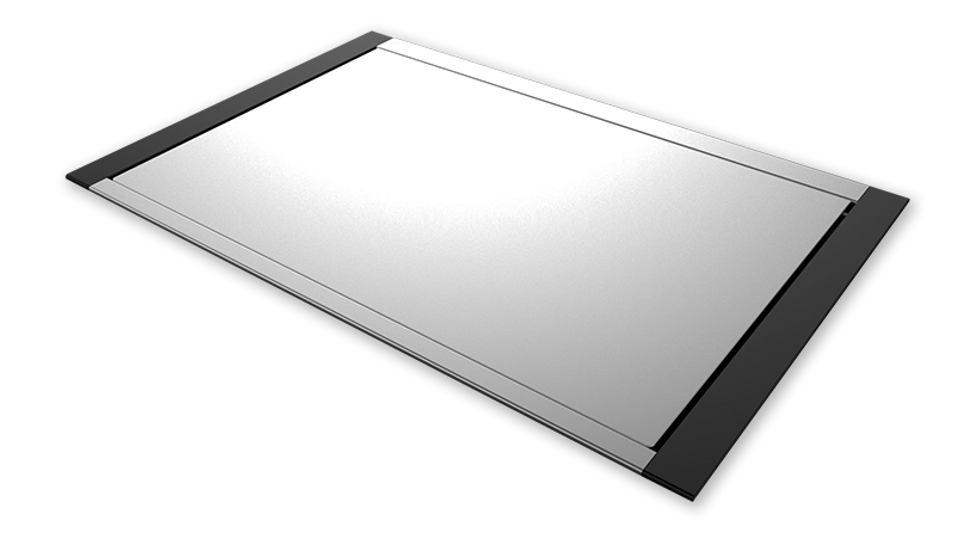

The HPX-MSP-10 / HydraPort Touch Connection Port with 10.1" Panel is a 10 Module HydraPort Connection Port with a 10.1" Modero S Series Touch Panel built into the cover. By combining device connectivity and room control into a single unit, HPX-MSP-10 reduces clutter and saves space on the table top. Thanks to an elegant yet practical design, HPX-MSP-10 looks great in any room, from huddle spaces to large conference rooms. When closed, the unit sits flush with the table top to keep the meeting space neat and clean. When open, the unit provides easy access to the HydraPort modules and a full-featured Modero S Series Touch Panel.

The HPX-MSP-10 includes the same flexible configuration that customers love about HydraPort. It uses simple, interchangeable modules to put together the exact future-proof configuration you need today and tomorrow. It can accommodate any existing HydraPort module, including retractable modules, and is simple to install.

The HPX-MSP-10 includes a specially designed, ultra-thin 10.1" control panel that includes all the great Modero S features, including a brilliant 24-color depth, PoE connectivity, video streaming, and VoIP support – all at an economical price point.

Common Applications

The HydraPort Touch is ideal for conference rooms and classrooms with small to medium-sized tables
Perfect for a combined connectivity and control solution in lecterns and podiums

Features

Connectivity & Control in a Single Unit – Saves space and eliminates clutter by combining a full-featured Modero S Touch Panel with a HydraPort in a single unit that opens and closes
Ultra-Thin Design that Sits Flush when Closed – The Panel is made with high quality materials and a spring-assisted hinge that provides the perfect amount of assist when opening and closing
10 HydraPort Connection Ports – Ample space for modules to connect, power and charge devices
Future-Proof Modular Design – Features a HydraPort assembly with the flexibility to change the modules to meet current and future needs
Powerful Graphics – Powered by the G4 graphics engine, the Modero S Series panel features streaming video and brilliant 24-bit color depth
Elegant & Responsive User Interface – Exclusive SmoothTouch™ display supports single touch gesturing and delivers responsive performance

Specifications

Display Size (WH)	9.1" x 5.9" (230 mm x 149 mm), 10.8" (274 mm) diagonal
Viewable Area (WH)	8.5" x 5.4" (217 mm x 136 mm ), 10.0" (256 mm) diagonal
Resolution	1280x800
Viewing Angle	Vertical: ± 85°, Horizontal: ± 85°
Aspect Ratio	16:9
Touch Overlay	Resistive
Graphics Engine	AMX G4
FG Numbers	FG571-09 (Silver) FG571-10 (Black)
