Overview

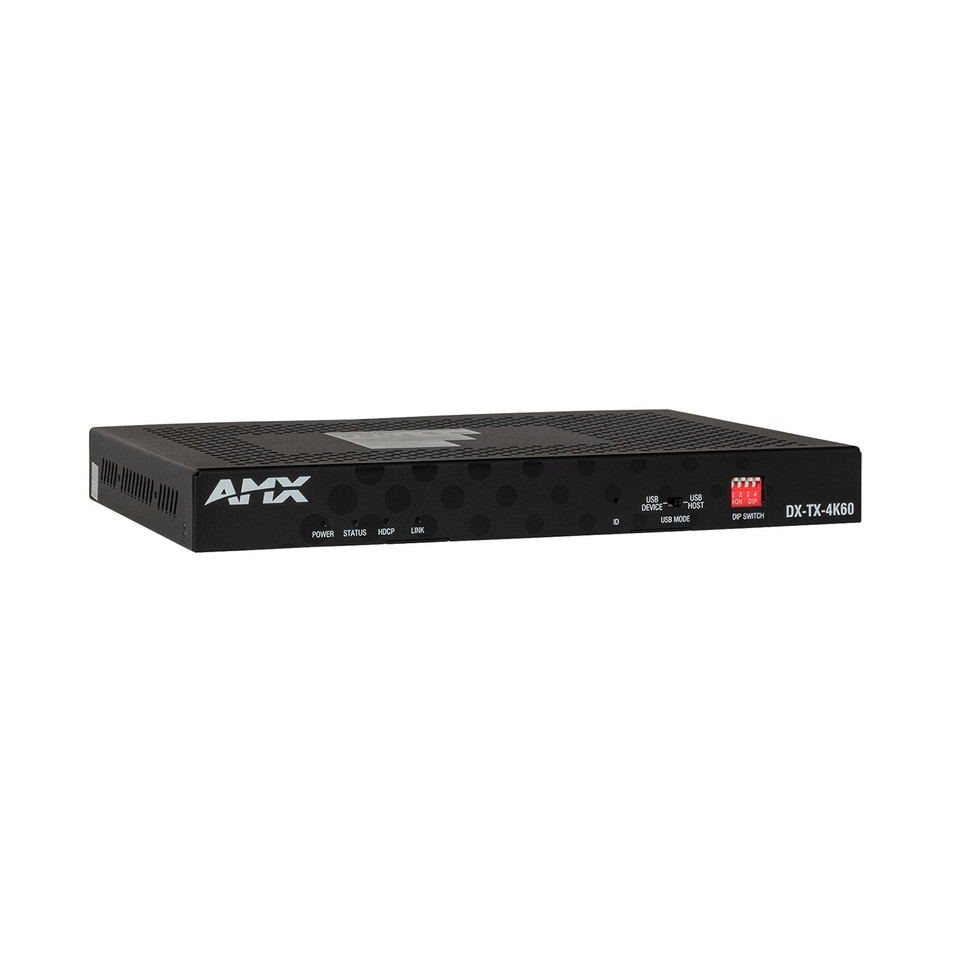

The AMX DXLink 4K60 HDMI Transmitter Module is a 4K60 4:4:4 capable distance transport solution with support for HDMI 2.0 and HDCP 2.2. It transmits audio, video, control, Ethernet, and USB 2.0 over one shielded Cat6, Cat6A or Cat7 standard twisted pair cable. DXLink 4K60 HDMI Transmitter Modules are perfect for sending HDMI and control signals over long distances to a remote DXLink 4K60 Receiver Module or other compatible AMX Receivers such as the DGX DXLink 4K60 Twisted Pair Input Board. The transmitter's built-in control ports can be used to control a source device and the ICSLan port provides an IP network access port when used in conjunction with the Enova DGX 100 Series.

Features

• HDMI 2.0 4K60 4:4:4 Over Distance - Ideal for users running critical viewing applications such as operations centers requiring transport which use the full fidelity of their displays
• High Dynamic Range (HDR) and Deep Color Support – Support for HDR10 and 36-bit Deep Color.
• HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces.
• HDBaseT Compatible - Compliant with the HDBaseT standard, making them compatible with third party HDBaseT displays.
• USB 2.0 - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.
• As Always, Just One Cable – Just like all current AMX DXLink audio and video transport solutions, high level resolution and fidelity transport is achieved over a single twisted pair cable in comparison to other products that may require dual cable runs, typically adding significant cost.
• Twisted Pair Cable – Save time and effort in installation by leveraging cost effective twisted pair cable.

Specifications

• Dimensions (HWD): 1" x 8 2/3" x 6 1/3" (2.54 cm x 22.0 cm x 16.0 cm)
• Twisted Pair Cable Type & Length
  • Shielded Cat6, Shielded Cat6A, Cat7.
  • Distances up to 328 ft (100 m) supported
  • on Shielded Cat6A and Cat7
• Back Connectors
  • Local Power; 2.1mm DC Power Jack; HDMI
  • Input: HDMI Type A Female; Analog Stereo
  • Input: 3.5mm Mini-Stereo Jack;
  • ICSLAN/Ethernet Port: RJ-45;
  • IR-RX Port: 3.5mm Mini Mono Jack;
  • IR-TX Port: 2-pin Phoenix;
  • Serial Port: 3-pin Phoenix;
  • DXLink Port: RJ-45;
  • USB Host Port: USB Type B;
  • USB Device Port: USB Type A
• USB2.0
  • USB2.0 supported point-to-point to DXLink
  • 4K60 compatible switcher or DXLink 4K60
  • HDMI Receiver
• HDMI: Compatible Formats: HDMI2.0, HDCP2.2, DVI
• Resolution Support: Up to 4096 x 2160p @ 60 Hz, 4:4:4
• HDMI Audio
  • Audio Resolution: 16 bit to 24 bit;
  • Audio Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
