Overview

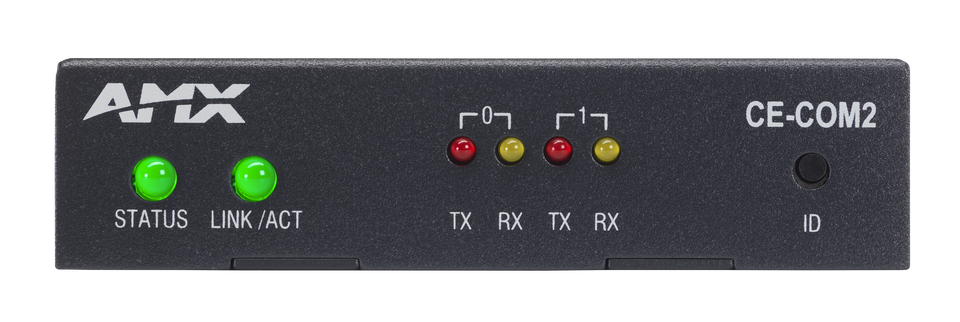

The AMX CE-COM2, Universal Control Extender with 2 serial ports, delivers AMX-quality hardware control to any system that supports IP connectivity. An open control API makes it simple to integrate these boxes with third-party control systems or apps, and the integrated web interface enables configuration without specialized applications. HControl enables them to be auto-discovered and integrated seamlessly with next generation AMX control processors and other HARMAN Professional products.
These universal control extender boxes provide a secure, professional-grade solution for interfacing with serially controlled devices over the network. They are PoE powered, with a small footprint for easy installation and concealment. As a network device, they extend the reach of control processors well beyond the limits inherent in point-to-point connections.
Features
- Professional-Grade Quality
- Open Control API
- Web Configuration Interface
- Compact Form-Factor
- PoE Powered
- HControl Native
Specifications
- Ports: (ICSLAN) Gigabit Ethernet port with PoE support, (RS232) 5-pin 3.5mm screw terminal, (RS232/422/485) 10-pin 3.5mm screw terminal
- Environmental
- Operating Temperature: 0° C (32° F) to 40° C (104° F)
- Storage Temperature: -10° C (14° F) to 60° C (140° F)
- Operating Humidity: 5% to 85% RH (non-condensing)
- Heat Dissipation (Typical): 36.9 BTU/hr Designed for indoor use only.
- Product Dimensions (H x W x D): 1" x 4 1/16" x 4 3/32" (2.5 cm x 10.3 cm x 10.4 cm)
- Product Weight: 1 lb (454 g)
