Overview:

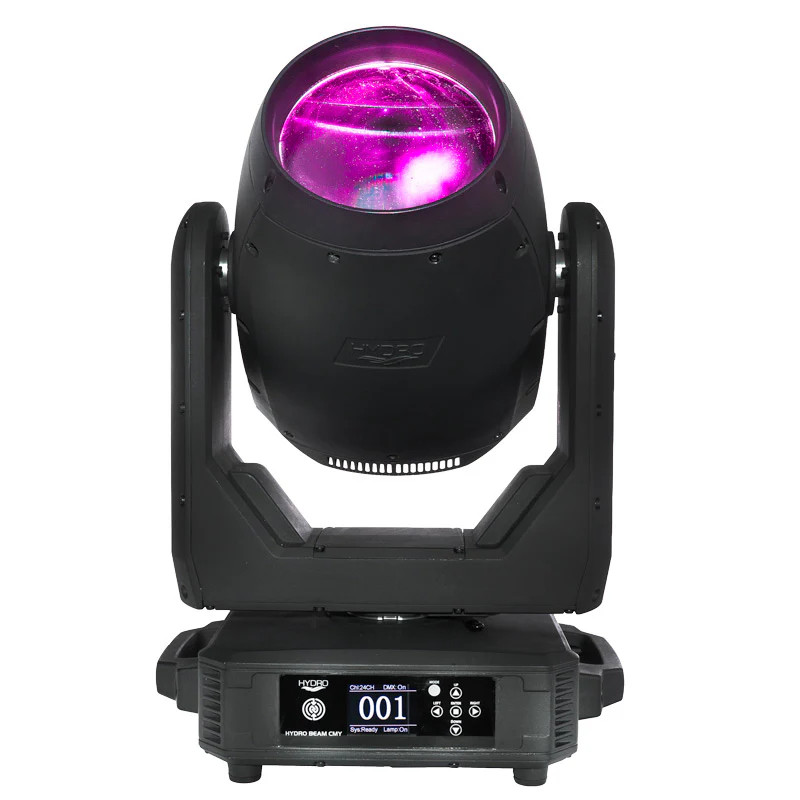

Powerful and precise, the Hydro Beam CMY is an IP65-rated beam fixture built to excel in the most demanding environments. Designed for outdoor festivals, stadium tours, theme parks, and large-scale events, it delivers the punch, speed, and reliability required by lighting professionals working both indoors and out. Powered by an OSRAM Sirius HRI 310W PRO discharge lamp, the fixture produces an ultra-bright, razor-sharp 2-degree beam that cuts effortlessly through ambient light, haze, and fog. Its high-quality glass lens and internal optics ensure consistent output and exceptional beam definition, while an advanced motorized focus system with 16-bit precision keeps every projection crisp at any distance.
A comprehensive feature set gives designers extensive creative flexibility. The CMY color mixing system offers smooth transitions and limitless hues, complemented by a 14-position dichroic color wheel that includes CTO (3200K), CTB (9000K), and UV filters. The fixture’s GOBO wheel features 17 static patterns, including four beam reducers, along with shake and split-color effects for added dynamism. For further versatility, the Hydro Beam CMY incorporates two rotating prisms (16-facet circular and 6-facet linear) that can be used individually or overlaid, plus a frost filter to create a soft-edged wash when desired.
Engineered for professional touring and temporary event applications, the Hydro Beam CMY features 3-phase high-speed pan and tilt motors, ensuring lightning-fast, precise movement. It supports cabled DMX control with RDM (Remote Device Management) and also features integrated Aria X2 wireless DMX and fixture management, allowing for streamlined setup and remote configuration. Robust and IP65-rated, it is protected against dust and water ingress, making it ideal for any weather condition. Combining rugged reliability with refined performance, the Hydro Beam CMY delivers lighting designers huge creative potential from a professional-grade outdoor beam fixture.
Specs:
Light Source:
OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)
Color temperature: 7850K (+/- 500K)
CRI: 86 (+/- 5)
Features:
CMY Color Mixing
On-Board Wireless DMX
Motorized Focus + 16-bit fine focus
2-degree beam angle
Frost Filter to create wash effect
High quality glass lens
2 Rotating prisms:
0-100% smooth dimming
Pan/Tilt locks
Various strobe speeds
OTA, wireless, firmware updates
Fan cooled
Color Wheel:
14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) & UV)
Indexable color wheel for split colors
Separate Multi-Color Effect
GOBO Wheel:
17 static GOBOs + open (4 GOBOs are beam reducers)
GOBO Shake Effect
Prism Wheels:
2 Rotating prisms
16 facet circular and 6 facet linear prisms
Prisms Overlay
Control:
Protocols: DMX512, RDM, Aria X2, NFC
Control Mode: DMX512 & Manual (On-board Controls)
2 DMX Channel Modes: 20/24 Channels
Color LCD display with 4-button function menu
0-100% smooth dimming
Various strobe speeds
With Wired Digital Communication Network
Pan/Tilt:
Pan: 540 degrees (plus 16-bit fine pan)
Tilt: 270 degrees (plus 16-bit fine tilt)
3-phase, High Speed, Pan/Tilt motors
Connections:
DMX Connections: Seetronic IP65 Rated, 5-pin DMX In/Out (Data link max: 32 fixtures)
Power Connections: IP65 locking power In/Out connections to daisy chain power
Electrical:
Multi-voltage operation: 100-240V, 50/60Hz
Max power consumption: 450W (@120V), 4300W (@230V)
Fuze Protected: 6.5A
Dimensions & Weight:
Dimensions: 15” (L) x 11.2” (W) x 23” (H) / 381.6 x 284.5 x 568.5mm
Weight: 56 lbs. / 25.6 kg.
Approvals / Ratings
CE
cETLus (Pending)
FCC
IP65
What’s Included:
2x Omega Brackets (107 Type)
2M, outdoor locking 14AWG power cord
Accessories (Sold Separately):
Quick Rig Clamp
Quick Rig Clamp BLK
Pro-Clamp
Accu-Cable Tour Link 5P15 - 15ft. 5-pin male/female professional grade DMX Cable
SIP152 - 16ft., IP65-Rated male to female locking power cord
