ElectraPix Par 7; IP65 20W LED With Wired Digital communication Network

SKU: ADJ-ELE700
MSRP: $1,399.95
MAP: $999.99

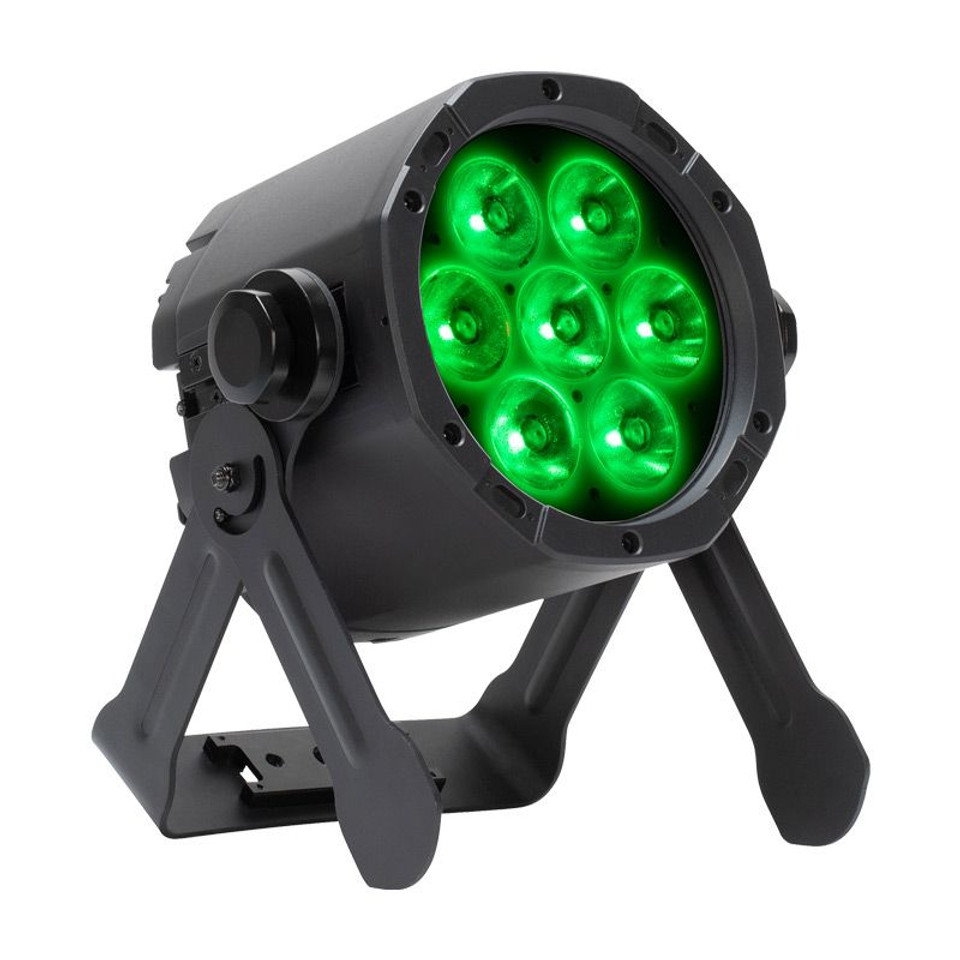

The ADJ Lighting ElectraPix Par 7 is a IP65-rated, battery powered, wireless DMX LED fixture. It features seven 20-Watt Hex Color LED (RGBAL+UV), Aria X2 wireless DMX and has a battery life up to 10 hours.


Features

  • 7 Pixel, Hex Color LED (RGBAL+UV) LED Par
  • Battery or Wall Powered
  • 5 Hour Standard Battery Operation and 10 Hour Saver Battery Operation (Menu Option)
  • Individual Pixel Control
  • Built-In Foreground LED Programs
  • Built-In Background LED Programs
  • Variable White Color Temperature Control (2,700K ~ 9,900K)
  • English & Spanish User Menu
  • Built-In Alarm
  • Color Calibrated LED's
  • User Selectable LED Refresh Rates (900Hz ~ 25K)
  • 6 User Selectable Dim Modes
  • 4 User Selectable Dim Curves
  • Electronic Strobe (0.3Hz ~ 11Hz)
  • Electronic Dimming


Specifications

Source:

  • (7) 20W Hex Color RGBAL+UV Foreground LED's
  • (29) 0.2W RGB Background LED's
  • 50,000 Hour Average Life*
  • *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical:

  • 2,300K ~ 9,900K White Color Temperature Range
  • 17° Beam Angle
  • 45mm Lens Diameter x8

Physical:

  • IP65 Housing
  • OLED Digital display
  • L Track system for locking accessories / rigging
  • Gel Frame Holder
  • Adjustable, hanging / kick stand bracket

Control:

  • DMX512
  • Aria X2 Wireless DMX
  • Bluetooth
  • RDM and RDM Net Compatible
  • IR (Includes UCIR24 wireless remote)
  • (4) DMX Channel Modes (5, 6, 9, 13, 21, 24, 42, 45 & 54 Channel modes)
  • On-board Manual Control Mode
  • Primary / Secondary Mode

Connections:

  • 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
  • Outdoor Locking Power Sockets
  • Battery Charging Socket

Dimensions & Weight:

  • Length: 11.11” (282.1mm) Width: 9.77” (590.3mm) Height: 7.46” (189.5mm)
  • Weight: 15.4 lbs. (7 kg)

Power:

  • AC100-240V/50Hz-60Hz Input
  • 60W Power Consumption
  • Link 15 pieces @120VAC or 28 pieces @ 230VAC

Battery:

  • Rechargeable Lithium ion
  • Battery Capacity: 7,000mAh
  • Battery Voltage: 22.2V
  • Charge Time: 6 Hours (To Full)
  • 5 Hour Standard Operation at Full Output and 10 Hour Saver Mode Operation at Full Output Selectable in the menu
  • Battery Cycles: 500

Thermal:

  • Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
  • Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

  • CE
  • cETLus (Pending)
  • FCC
  • IP65

Included Accessories:

  • (1) Outdoor Locking Power Cable
  • (1) UCIR24 Remote
  • (1) Gel Frame
  • (1) 20° Diffusion Filter
