16 Mic Line + 2 stereo rack mount mixer, 6 aux sends, 4 band EQ with dual swept mids, dual FX engines, rack mount

SKU: AH-WZ416:2

MSRP: $2,199.99

MAP: $1,799.99

UPC:

Current Stock:

Quantity:

Description

Allen & Heath MixWizard4 16:2
Desk / Rack-Mountable All Purpose Mixer

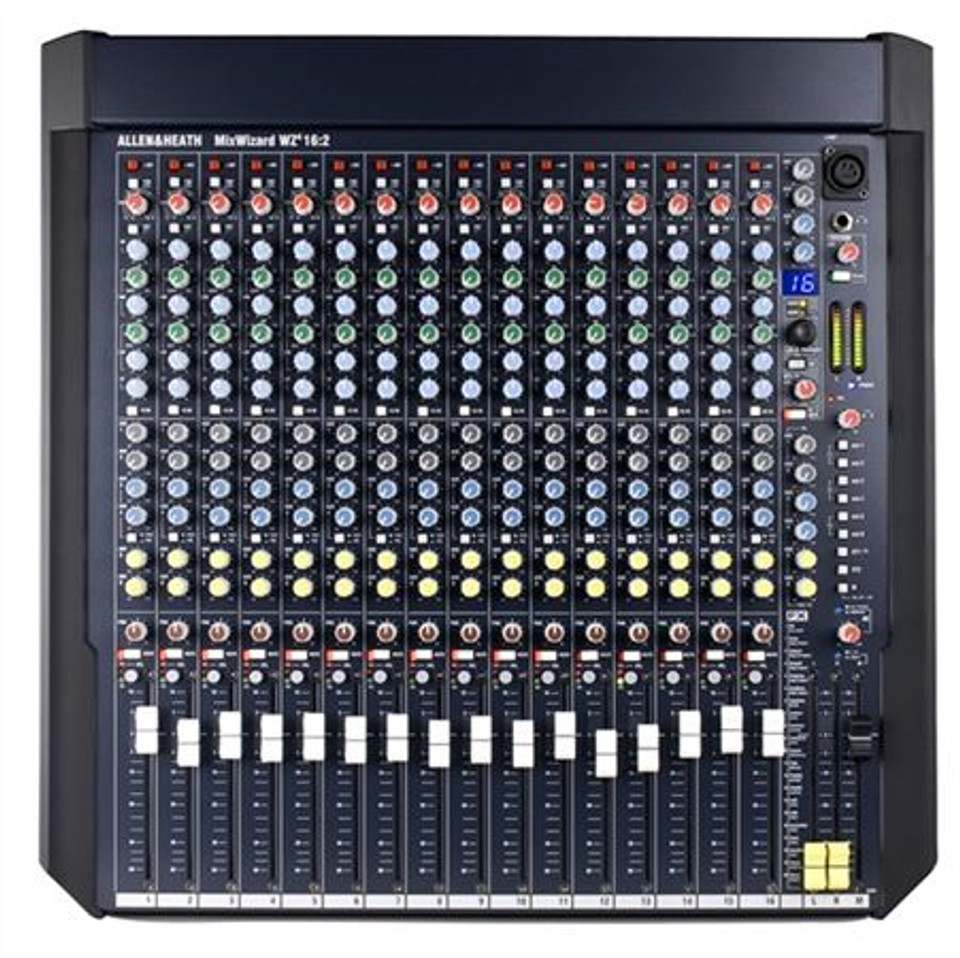

With its simplicity quality and plentiful inputs WZ4 16:2 will be loved by seasoned engineers and novice operators alike. This is a true all-purpose mixer providing a full 16 high specification mic/line inputs in a compact straightforward format that has made it a consistent best seller.

WZ4 16:2 features our acclaimed 4 band EQ with 2 sweepable mids high quality 100mm faders 6 aux sends 12 segment bargraph metering and our unique QCC connector system for easy desktop rack or flightcase mounting.

New features for this 4th generation MixWizard console include two newly designed digital FX engines with 20 studio quality FX presets EQ in/out switching and the option to fit a multichannel USB interface with high quality 16 channel soundcard for easy multitrack recording and 2-track playback.

If you’re looking for professional grade all-purpose analogue mixers in a compact rack mountable frame the MixWizards continue to set the bar.

Features:

19” Rack mountable
16 mic/line inputs with balanced XLR/TRS jack insert and direct output
100mm faders
4 band EQ with 2 swept mids
6 Aux sends - 2x pre fade / 2x switched / 2x post fade*
2 Stereo returns
Dedicated mono output fader - can be switched to provide an L+R mono feed for a centre orfill speaker or sub bass feed
Independent A-B output for 2-track recording monitor foldback speaker fills etc
Tri-colour 12 segment bargraph metering
Twin FX engines with 20 studio quality FX presets
+48V Phantom Power
Signal and Peak LEDs
Talkback Mic XLR with trim
Lamp socket
USB multitrack recording option
Footswitch connector (mutes/unmutes the ST1 FX Return)

Specifications:

Performance
Maximum Output Level	XLR - +26 dBu into 600 ohms max load 1/4" jack - +21 dBu into 2k ohm max load
Headroom	Channels +21 dB Mix +23 dB
Metering	3-color LED, quasi peak response: Sensitivity - 0VU = +4 dBu at XLR output Master meters - 12-segment -30 to +16 dB Channel meters - 2-segment -12, +16 dB (5 dB before clip)
Frequency Response	10 Hz to 30 kHz (+/-0.5 dB)
THD + N	Channel to mix out < 0.004% (at +10 dBu 1 kHz)
Crosstalk	Fader shutoff > 90 dB (at 1 kHz) Mute shutoff > 90 dB (at 1 kHz) Inter channel > 90 dB (at 1 kHz)
Noise	Mic EIN, -127 dB, (rms 22 Hz to 22 kHz) Residual output noise, < -95 dBu (-99 dB S/N), (rms 22 Hz to 22 kHz) LR unity fader mix noise, < -83 dBu (-87 dB S/N), (rms 22 Hz to 22 kHz)
High-Pass Filter	12 dB/octave below 80 Hz, (channel)
Equalization	EQ: HF shelving, +/-15 dB, 12 kHz HM peak/dip, +/-15 dB, 500 Hz to 15 kHz, Q = 1.8 LM peak/dip, +/-15 dB, 35 Hz to 1kHz, Q = 1.8 LF shelving, +/-15 dB, 80 Hz Stereo EQ HF Shelving ±15 dB, 12 kHz HM Peak/dip ±15 dB, 2.5 kHz, Q=1.8 LM Peak/dip ±15 dB, 250 Hz, Q=1.8 LF Shelving, ±15 dB, 80 Hz
Power Supply	100 - 240 V, 50/60 Hz auto sensing, IEC input Power consumption 45 W max Mains fuse T630 mA L 20 mm

I/O Connections
Connections	Mono channel: XLR balanced pin 2 hot, -60 to +10 dBu, sensitivity TRS balanced tip hot, -40 to +10 dBu, sensitivity Pad out (MIC), 2 kΩ Pad in (MIC or LINE), >10 kΩ, -20 dB Max input level, +30 dBu XLR phantom power, +48 V, on/off Stereo channel: ST1, 3 TRS unbalanced >10 kΩ, -16 to +20 dBu ST2, 4 TRS balanced >10 kΩ, -16 to +20 dBu Stereo returns: ST1(5) TRS balanced >10 kΩ, -6 to +20 dBu ST2(6) TRS unbalanced >2 kΩ, -2 to +20 dBu Inserts: Channel TRS, tip send, ring return, 0 dBu Output TRS, tip send, ring return, -2 dBu L, R, M outputs: XLR balanced pin 2 hot, <75 Ω, +4 dBu, +26 dBu max Aux 1-6 output TRS impedance balanced, <75 Ω, -2 dBu, +21 dBu max Electronic balance option, <75 Ω, +4 dBu, +26 dBu max Direct out: TRS impedance balanced, <75 Ω, 0 dBu, +21 dBu max AB out: TRS impedance balanced, <75 Ω, -2 dBu, +21 dBu max Headphones: TRS, tip L, ring R, 30 to 600 Ω headphones recommended Lamp: 4-pin XLR, max 12 V 5 W lamp

Connections

Mono channel:
XLR balanced pin 2 hot, -60 to +10 dBu, sensitivity
TRS balanced tip hot, -40 to +10 dBu, sensitivity
Pad out (MIC), 2 kΩ
Pad in (MIC or LINE), >10 kΩ, -20 dB
Max input level, +30 dBu
XLR phantom power, +48 V, on/off

Stereo channel:
ST1, 3 TRS unbalanced >10 kΩ, -16 to +20 dBu
ST2, 4 TRS balanced >10 kΩ, -16 to +20 dBu

Stereo returns:
ST1(5) TRS balanced >10 kΩ, -6 to +20 dBu
ST2(6) TRS unbalanced >2 kΩ, -2 to +20 dBu

Inserts:
Channel TRS, tip send, ring return, 0 dBu
Output TRS, tip send, ring return, -2 dBu

L, R, M outputs:
XLR balanced pin 2 hot, <75 Ω, +4 dBu, +26 dBu max

Aux 1-6 output
TRS impedance balanced, <75 Ω, -2 dBu, +21 dBu max
Electronic balance option, <75 Ω, +4 dBu, +26 dBu max

Direct out:
TRS impedance balanced, <75 Ω, 0 dBu, +21 dBu max

AB out:
TRS impedance balanced, <75 Ω, -2 dBu, +21 dBu max

Headphones:
TRS, tip L, ring R, 30 to 600 Ω headphones recommended

Lamp:
4-pin XLR, max 12 V 5 W lamp

Mechanical
Dimensions	20 x 20.9 x 7.7" (507 x 530 x 194 mm), (free standing) 19 x 4.8 x 17.5" (483 x 122 x 444 mm), (rack mounted, 10U, underside connectors) 19 x 7.6 x 19.6" (483 x 193 x 497 mm), (rack mounted, 11.2U, rear connectors)
Weight	28 lb (13 kg)

Packaging Info
Package Weight	37.1 lb
Box Dimensions (LxWxH)	25.0 x 24.0 x 13.5"
