PREMIUM 8-CHANNEL PREAMP

Features

• NEXT-GENERATION PREAMP DESIGN WITH DC COUPLED GAIN STAGE

• USE WITH DX32 FOR SQ, DLIVE & AVANTIS

• EACH INDIVIDUAL CHANNEL IS FINE-TUNED BY HAND FOR OPTIMUM COMMON MODE PERFORMANCE

• METICULOUS DESIGN OF GROUNDING AND POWER SUPPLY TO MINIMISE NOISE AND DISTORTION

• FULL METAL SHIELDING FOR INCREASED RF REJECTION THROUGHOUT

• THE VERY LATEST 32-BIT / 96kHz ADC  FOR CLASS-LEADING CONVERSION

• 4 CHANNELS OF SUMMED ADC PER INPUT’ FOR EXTENDED DYNAMIC RANGE AND INCREASED SNR

• OPTIMISED FOR USE WITH OUR 96kHz XCVI FPGA CORE

When leading engineers and artists need the highest quality analogue outputs from their dLive, Avantis or SQ system, whether it's for monitors, amp racks or broadcast applications, we now offer the PRIME Output module, a completely redesigned D-A card with unprecedented levels of audio quality.
Using the very latest converter and component technology in a fully balanced topology, the PRIME Output module is optimised from the ground up for use with our cutting-edge 96kHz XCVI FPGA console core.
Available as 8-channel cards for mounting directly into a DX32 Modular Expander, PRIME Output modules can be configured however you require, standalone, or in combination with the PRIME Input modules for the ultimate end-to-end system.

PRIME Output technology

With the same attention to detail and meticulous component choice as the PRIME Input card, high quality resistors, capacitors and op-amps have been selected for their exceptional performance: low noise, low distortion and linearity.
The inclusion of a balanced line driver circuit not only offers ultra-low noise and distortion, but maintains common mode feedback when clipping and avoids excessive ground currents, further slashing distortion. The improved inter channel cross-talk results in optimal stereo field and depth.
The differential design also reduces common mode DC offsets on the output, removing coupling capacitors to realise the most transparent sound possible throughout the frequency range.
Our premium 32-bit DAC technology runs at 96kHz, offering exceptional distortion and noise characteristics for ultra-high performance. The DAC filter can also be configured for different anti-aliasing roll-off filter characteristics including roll-off speed and latency - so you can choose the optimal settings depending on the application.

To preserve signal integrity the PRIME circuitry is encased in full metal shielding for increased RF rejection throughout the signal path.

For those looking to get the highest levels of audio performance from their dLive, Avantis or SQ, we've created PRIME, two new modules for use with DX32 expanders.

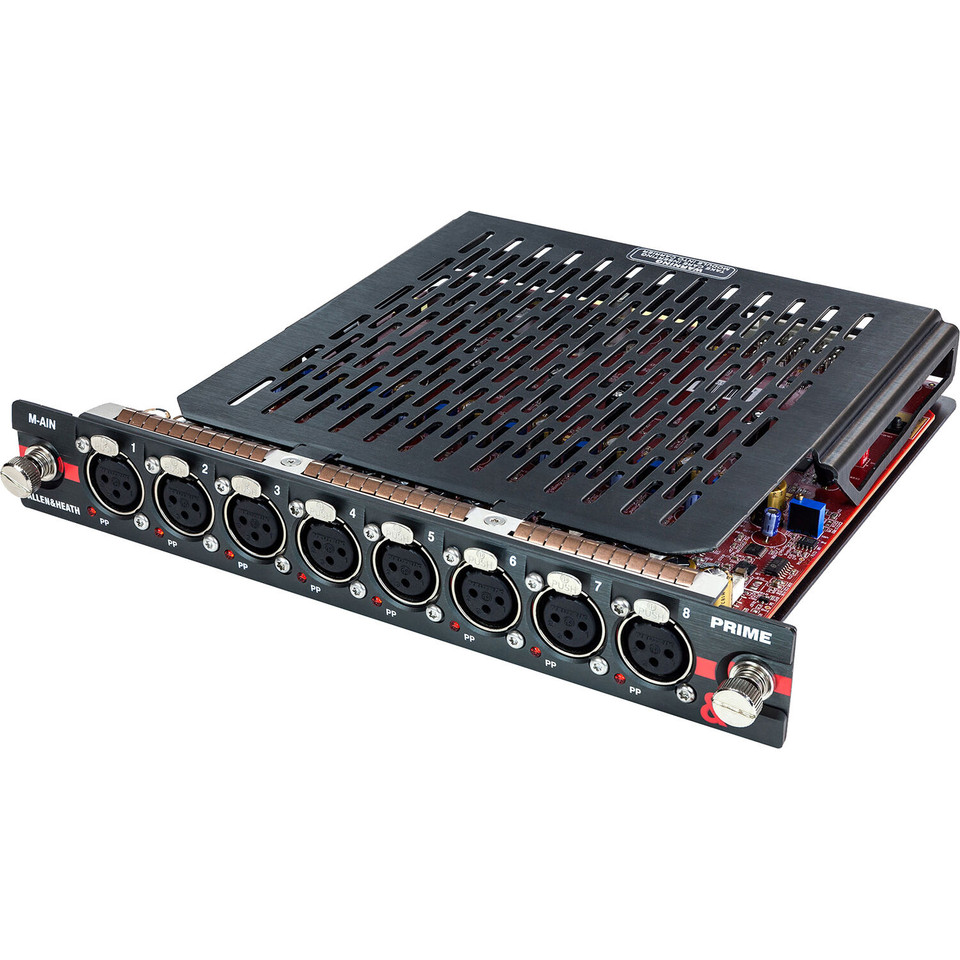

The PRIME Input Module is a completely new Allen & Heath preamp design at the leading-edge of audio tech.
Using the very latest converter technology and ultra-linear components combined with meticulous design, the PRIME Input module lets you exploit the full potential of our 96kHz XCVI FPGA core, delivering next-level audio quality for critical live, broadcast and studio applications.
Available as 8-channel cards for mounting directly into a DX32, you can create the configuration you require, whether it's for a handful of critical 'money' channels, or a whole orchestra section.
What makes it so good? Using years of experience in combination with ultramodern technology, we believe we've redefined transparency, slashing THD and vastly improving noise performance, while ensuring wickedly fast slew-rates for incredible transient response.
