Overview

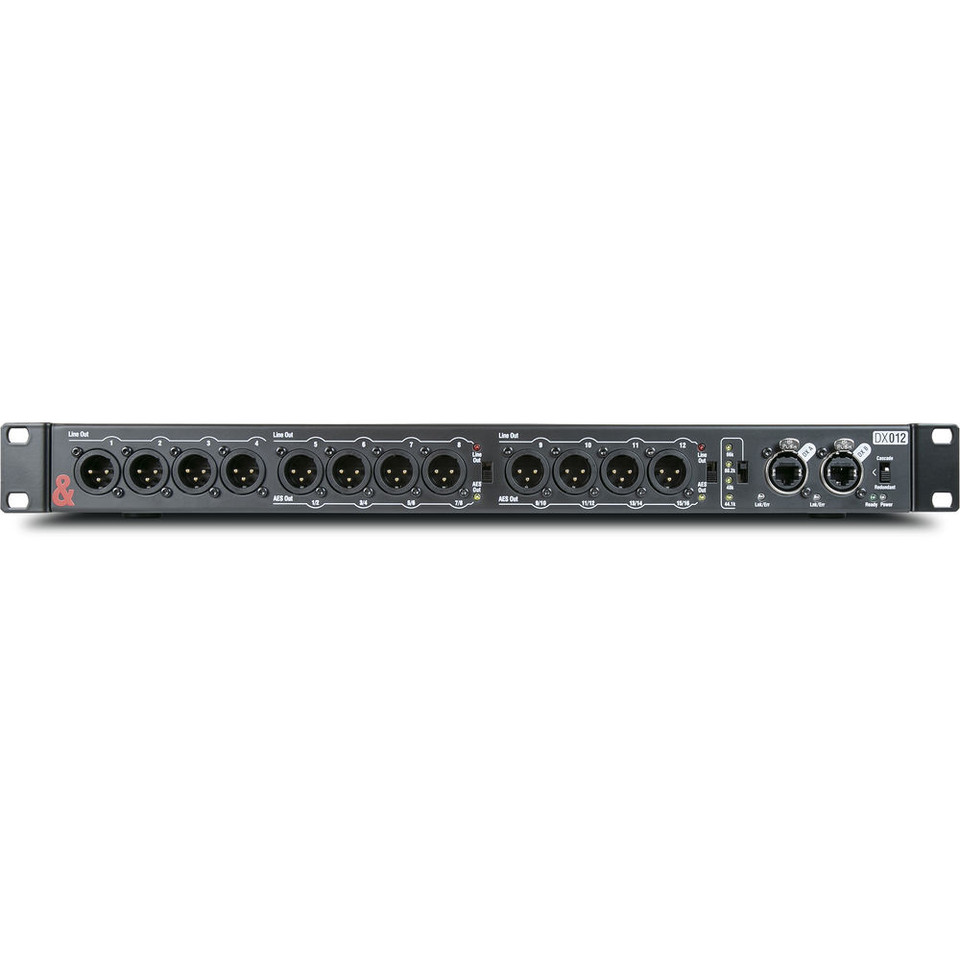

12 XLR Output Analogue/AES Portable DX Expander

Need to get more out of your system? DX012 provides remote output expansion for SQ, Avantis and dLive mixers, and for the AHM-64 audio matrix processor.

Perfect for feeding IEM systems and amplifier racks, DX012 offers both analogue and AES digital output options in a compact 1U form factor.

Each DX012 provides 12 XLR outputs, configurable as:

• 12 analogue line outputs
• 8 analogue line outputs + 4 stereo AES outputs
• 4 analogue line outputs + 8 stereo AES outputs

The DX012 connects via a single Cat5e cable to the dLive Surface, dLive MixRack, AHM-64 mattrix processor, Avantis mixer, SQ mixer or upstream DX expander via a secure EtherCon port.

A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX expander for additional remote I/O.

Features

• Compatible with SQ, Avantis and dLive systems
• 12 XLR Outputs:
  • 1-4 Analogue Line Out
  • 5-8 Analogue Line out or AES Digital out (switchable)
  • 9-12 Analogue Line out or AES Digital out (switchable)
• AES outputs globally switchable between:
  • 44.1kHz
  • 48kHz
  • 88.2kHz
  • 96kHz
• Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port
• Redundant DX connection to compatible hardware
• Multiple DX012 can be added to a system:
  • Up to 16 DX012 units can be added to a SQ system
  • Up to 16 DX012 units can be added to an Avantis system
  • Up to 46 DX012 units can be added to a dLive S Class system
  • Up to 22 DX012 units can be added to a dLive C Class system
  • Up to 8 DX012 units can be added to an AHM-64 system
• Rack-mounted (1u) or shelf/floor operation
• Plug and Play – no IP addressing required
• Compatible with CAT5e (or higher) cables of up to 100m
• Locking EtherCon ports
