CLEAR. ACCURATE. AFFORDABLE.
For project studios, home recording and stage

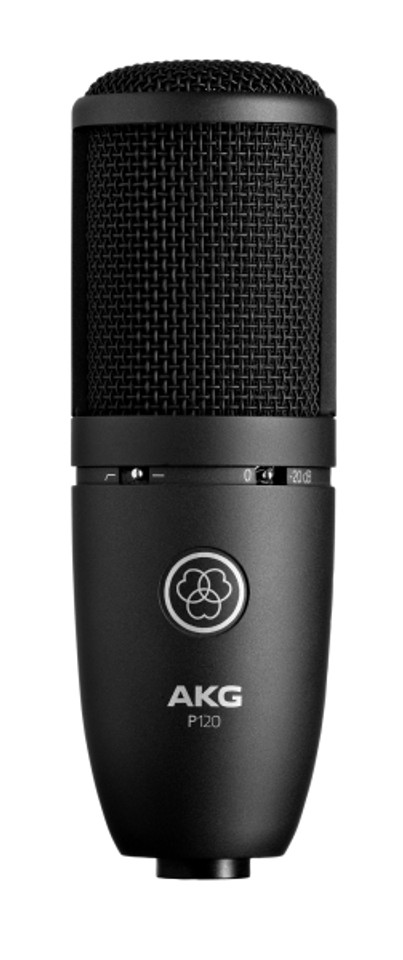

The P120 is a 2/3-inch diaphragm true condenser microphone that offers solidly built quality, outstanding performance and excellent value. The low-mass diaphragm delivers a clear sound with accurate sonic detail for vocals, speech and instrument recording in project studios and for home recording.
Rugged all-metal body and robust design
withstands tough day-to-day use
Switchable bass-cut filter
eliminates rumble or footfall noise
Switchable attenuation pad
for high SPL applications up to 150 dB SPL
TECHNICAL SPECIFICATION
| General |
| Audio frequency bandwidth |
20 to 20000 Hz |
| Equivalent noise level |
19 dB-A |
| Sensitivity |
24 mV/Pa |
| Signal to Noise |
75 dB-A |
| Preattenuation Pad |
-20 dB |
| Bass cut filter |
300 - 6 dB/octave Hz |
| Electrical impedance |
<= 200 Ohms |
| Recommended load impedance |
>= 1000 Ohms |
|
| Polar Patterns |
| Cardioid |
 |
|
| Powering Interface |
| Voltage |
44 to 52 V |
| Current |
<= 3 mA |
|
| Audio Output |
| Type |
Balanced XLR |
| Gender |
Male |
| Contacts |
3-pin |
|
| Dimensions / Weight |
| Length |
165 mm |
| Diameter |
54 mm |
| Net Weight |
455 g |
|
