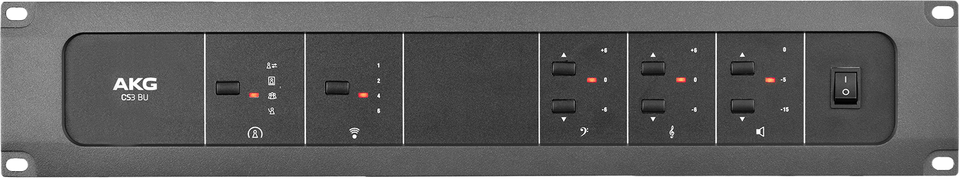

AKG CS3 BU
Base Unit for CS3 Conference System
Power in a box for mobile and fix installed conferences
The CS3 BU is the base unit for the CS3 conference system and provides all the necessary inputs and outputs to manage a conference for up to 60 microphone stations. It is the interface to all audio devices in a meeting room and offers a RS232 interface to connect an optional camera control system.
The CS3 BU can even work in a stand-alone mode in four selectable operating modes offering maximum flexibility in conference management. With the NOM limitation function the maximum number of active stations can be programmed to 1 2 4 or 6 simultaneous open microphones.
If necessary two CS3 BU's can be combined to control a large conference system with up to 120 microphone stations.
Features:
- All in one conference controller
for discussion systems of up to 60 stations per base unit
- Four selectable operating modes
for flexible conference management
- Connects to all relevant devices
e.g. PA recording ext. audio and camera control systems
- Extension interface
combines two units to control up to 120 stations
- Compact 19" housing
for easy rack mounting
CS3 Plug N Play Conference System
Keeps it Simple for mobile and fix installed conferences
The CS3 System is a modular and flexible conference system for small and medium size applications. It´s reliable components can be easily set up wired and expanded. One CS3 base unit can support 60 microphones. The base unit connects to all relevant devices like PA recording external audio sources and camera control systems. Different operating modes enable automatic or controlled conferences even without PC remote.
The CS3 microphone station comes with a robust interface connector which makes it easy to interchange the stations microphone. The detachable microphone comes in two choices - the CS321 cardioid condenser capsule on a 30cm (12in) long
Install Sound > Install Microphones > Gooseneck and the 50cm (20in) long CS521.
The CS3 combines easiness in setup and use with professional AKG audio quality. The rugged and elegant design fits in any venue.
Features:
- All in one conference controller
for discussion systems of up to 120 stations (up to 240 delegates)
- Stand alone or computer controlled operation
ensures easy and user-friendly handling
- Four selectable operating modes
for flexible conference management
- Interchangeable microphones
maximum flexibility for any type of conference situation
- Plug 'n' Play
set includes all components for a quick set-up
Specifications
| Design |
| ||||||||
| Powering |
| ||||||||
| Dimensions / Weight |
|
