Overview

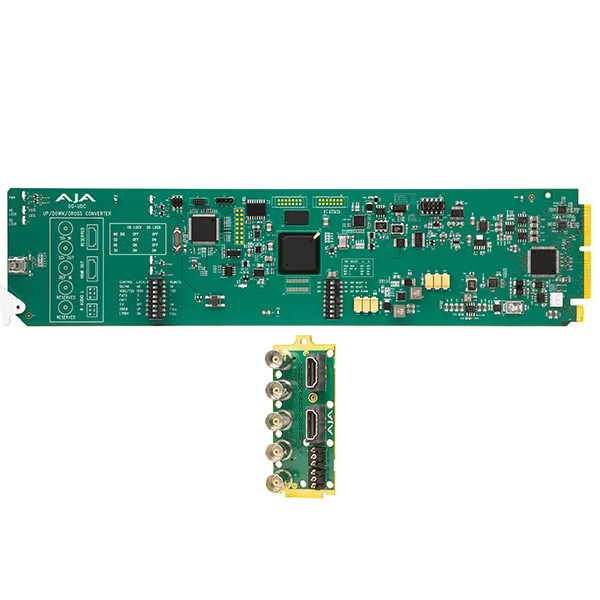

OG-UDC is an openGear 10-bit broadcast quality up, down, cross-converter that bridges HD and SD video resolutions. The OG-UDC provides 3G-SDI input and output, HDMI output and two 3-pin terminal block connectors for analog audio outputs.
Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, DashBoard software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.
Features
- openGear compatible card
- Converts between SD, HD, and 3G HD formats
- Very high quality conversions
- Loss of Input management: Freeze, Black, or Mute
- Supports 1080p50/60
- 16-channel embedded SDI audio input and output
- 2x 3-Pin Terminal Block connectors (included)
- Reference Input
- Remote configuration through DashBoard Control System for an openGear frame
- Local configuration through DIP Switches
- Rear I/O card included
- Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
- Five year warranty
NOTE:
OG-UDC supports 3G-SDI Level A only. 3G-SDI Level B is not supported.
OG-UDC passes-through embedded audio ancillary data only. It does not pass through other types of embedded ancillary data.
Specification
Video Formats
- (HD) 1920 x 1080p
- (HD) 1920 x 1080PsF
- (HD) 1920 x 1080i
- (HD) 1280 x 720p
- (SD) 720 x 625i
- (SD) 720 x 576i
- (SD) 720 x 480i
Video Input Digital
- 1x 3G-SDI BNC, SMPTE-259/292/372/424
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- (SD) 720 x 576i 50, 59.94, 60
Video Output Digital
- 1x 3G-SDI BNC, SMPTE-259/292/372/424
- (HD) 1080p 23.98 (for 23.98 video inputs)
- (HD) 1080p 24 (for 24 video inputs)
- (HD) 1080p 25 (for 50 video inputs)
- (HD) 1080p 29.97 (for 59.94 video inputs)
- (HD) 1080p 30 (for 60 video inputs)
- (HD) 1080p 50 (for 50 video inputs)
- (HD) 1080p 59.94 (for 23.98, 59.94 video inputs)
- (HD) 1080p 60 (for 24, 30 or 60 video inputs)
- (HD) 1080PsF 23.98 (for 23.98 video inputs)
- (HD) 1080PsF 24 (for 24 video inputs)
- (HD) 1080PsF 25 (for 50 video inputs)
- (HD) 1080PsF 29.97 (for 59.94 video inputs)
- (HD) 1080Psf 30 (for 30 or 60 video inputs)
- (HD) 1080i 59.94 (for 23.98, or 59.94 video inputs)
- (HD) 1080i 60 (for 24, 30, or 60 video inputs)
- (HD) 1080i 50 (for 25 or 50 video inputs)
- (HD) 720p 50 (for 50 video inputs)
- (HD) 720p 59.94 (for 23.98, 59.94 video inputs)
- (HD) 720p 60 (for 24, 30, or 60 video inputs)
- (SD) 625i 50 (for 25 or 50 fps video inputs)
- (SD) 525i 59.94 (for 23.98 or 59.94 video inputs)
Reference Source
- Free Run
- Ext Ref
Reference Input
- Supported reference video inputs include
- 1080i tri-level sync
- 1080p tri-level sync
- 720p tri-level sync
- 625i Color Black
- 525i Color Black
- 75-ohm terminating
HDMI Output
- 10-bit HDMI v1.4a
Audio I/O
- 16-channel embedded SDI audio input
- 16-channel embedded SDI audio output
- 8-channel HDMI audio output
- Balanced analog audio outputs, 2x 3-Pin terminal block connectors
Ancillary Data
- Supports pass-through of PCM embedded audio
- Supports pass-through of non-PCM audio when source is in time with the selected ref (SDI In or Ext Ref). Non-PCM audio is not supported during frame sync operation.
- All other ANC data is stripped
User Controls
- External DIP switch
- openGear DashBoard network control software via Windows, macOS or Linux
Size (w x d x h)
- openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight
- 0.5 lb (0.3 kg)
Power
- openGear frame compatible, 7.0 watts max per card
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
