Overview

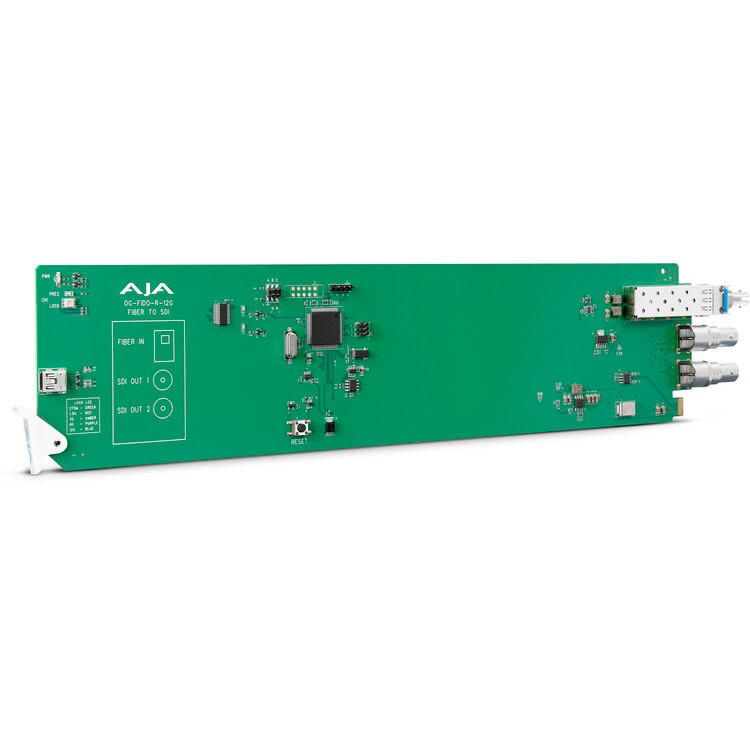

The OG-FiDO-R-12G-ST is a state of the art, openGear compatible Fiber to 12G-SDI converter, enabling 12G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable. The fiber input is reclocked with best in class input jitter tolerance. The OG-FiDO-R-12G-ST offers a locking ST barrel connector for secure connectivity, advantageous in many live event, production and mobile environments.

AJA openGear OG-FiDO products are designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, with industry standard DashBoard software support on Windows®, macOS® and Linux®, offering remote control and monitoring over a PC or local network.

Features

• Video Formats: 270 Mbps - 12 Gbps, format agnostic
• Inputs: 1x Single-Mode ST Fiber Connectors
• Outputs: 1x 12G-SDI BNC with SDI Loop out
• Support for HDR - High Dynamic Range video
• Supports pass-through of SDI metadata, including HDR
• Input Present and Input SMPTE Lock LEDs
• Automatic detection and reclocking
• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps -
• Auto Select
• Nominal Wavelength; Rx :1260-1620 nm
• Hot-swappable
• Remote Ethernet Monitor through Ross DashBoard software
• Appropriate Fiber SFP included
• Rear I/O card included
• Power: 3 watts Max
• Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Five year warranty

HDR Pass-Through Support

HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than SDR or Standard Dynamic Range signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

Connectivity

Both Fiber and 12G-SDI inputs are reclocked with best in class input jitter tolerance. 12G-SDI input and output support, which includes 6G/3G/HD/SD-SDI. Both signal paths are independent and can be different rates. Supports single mode fiber cable.

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

Flexible I/O

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

DashBoard Software

Ross DashBoard software offers quick and convenient configuration of openGear cards on macOS, Windows, and Linux.

AJA Mini-Matrix

Information on the complete line of AJA openGear frames and cards is now available in the Mini-Matrix. AJA products are extensive, and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation, or encounter any technical issues, AJA Support will work with you to get up and running.

openGear products are covered by a generous five year warranty. Please see the individual Product Manual for additional specifics regarding warranty conditions for the product itself.

Specifications

Video Formats

• 270 Mbps - 12 Gbps, format agnostic

Video Input Digital

• 1-channel 12G-SDI Single Mode ST Fiber connector, SMPTE 297/259/292/424/2081/2082
• Nominal Wavelength: Rx 1260 nm (Min), 1620 nm (Max)
• Optical Sensitivity: -10 dBm (Max) for 6 Gbps & 12 Gbps, -14 dBm (Max) for 270 Mbps, 1.5 Gbps & 3 Gbps
• Overload Power: -2 dBm (Min)

Video Output Digital

• 1-channel dual matching 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082

Reclocking

• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
• All other rates are passed through and not reclocked

User Interface

• openGear DashBoard network control software via Windows, macOS, or Linux

Size

• openGear standard form factor, front slot and rear card
• Two slots required for each card

Weight

• 0.5 lb (0.3 kg)

Power

• openGear frame compatible, 3.0 watts max per card

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% non-condensing
• Operating Altitude: <3,000 meters (<10,000 feet)
