Overview

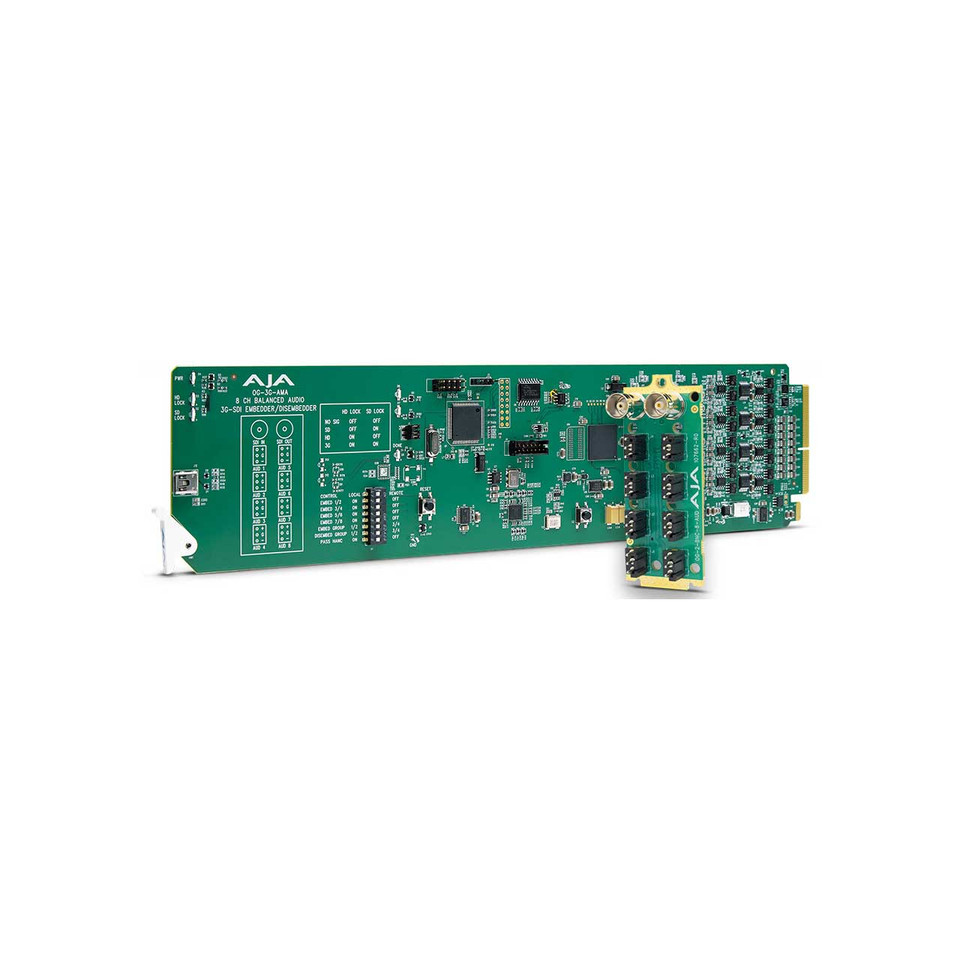

An openGear 8-Channel analog audio embedder/disembedder, OG-3G-AMA supports 3G-SDI input and output up to 1080p60, and automatically detects and configures to the input video standard. It uses 3-pin terminal block connectors that can be set to perform audio input or output functionality.

Analog audio levels and audio embedding/disembedding are selectable, with embedding/disembedding on a channel pair basis to pass 3G-SDI input audio or embed input analog audio from 3-pin terminal block connectors.

Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.

Features

• openGear compatible card
• 3G-SDI Audio Embedder/Disembedder
• 8-Channel Balanced Analog Audio I/O
• 8x 3-Pin Terminal Block connectors (included)
• Supports HDR pass-through
• Controlled by DashBoard network control software and external DIP switch
• Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
• Five year warranty

Specifications

Video Formats

• (2K) 2048x1080p
• (2K) 2048x1080PsF
• (HD) 1920x1080p
• (HD) 1920x1080PsF
• (HD) 1920x1080i
• (HD) 1280x720p
• (SD) 720x576i
• (SD) 720x480i
• RGB and YCbCr, 4:4:4/4:2:2, 10-bit

Video Input Digital

• 1x 3G-SDI BNC, SMPTE-259/292/424
  • Single Link SD/HD/2K
  • Single Link 3G-SDI Level A, Level B (Dual Link or Dual Stream), SMPTE 425

Video Input Formats

• 1x 3 Gb SDI (level A or B)
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
• 1x 1.5 Gb SDI
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
  • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
• 1x 270 Mb SDI
  • (SD) 625i 50
  • (SD) 525i 59.94

Video Output Digital

• 1x 3G-SDI BNC, SMPTE-259/292/424
  • Single Link SD/HD/2K
  • Single Link 3G-SDI Level A, Level B (Dual Link or Dual Stream), SMPTE 425

Video Output Formats

Video Out is a delayed, reclocked version of Video In, at the same frame rate, etc. Video Out is undefined when no input.

• Video Latency, time measured between video input and video output connector:
  • 3G level A = 3.2 usec
  • 3G level B = 6.1 usec
  • HD (1.5 Gb) = 6.3 usec
  • SD (270 Mb) = 17.2 usec

Audio Inputs and Outputs

• Audio Connectors
  • 8x Analog Audio Connections (4 pairs total)
    • Each pair configurable to Inputs or Outputs
  • Digital Audio Converters
    • 24-bit
  • Embedded Audio
    • SMPTE 272M (SD): 20-bit, 48 kHz synchronous
    • SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
    • Incoming embedded audio can be passed, removed, or overridden
    • 16x channels supported (8x can be from the analog inputs)
  • Embed Path Audio Latency, time measured between audio input and video output connector:
    • 1100 usec
  • Disembed Path Audio Latency, time measured between video input and audio output connector:
    • 1200 usec
  • Analog Audio Levels
    • Configured via Dashboard software:
      • Pro 1: 0 dBfs = +24 dBu
      • Pro 2: 0 dBfs = +18 dBu
      • Pro 3: 0 dBfs = +15 dBu
      • Consumer 1: 0 dBfs = +12 dBu

User Interface

• External DIP switch
• openGear DashBoard network control software via Windows, macOS, or Linux

Size

• openGear standard form factor, front slot and rear card
• Two slots required for each card

Weight

• 0.5 lb (0.3 kg)

Power

• openGear frame compatible, 5.0 watts max per card

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
