Overview

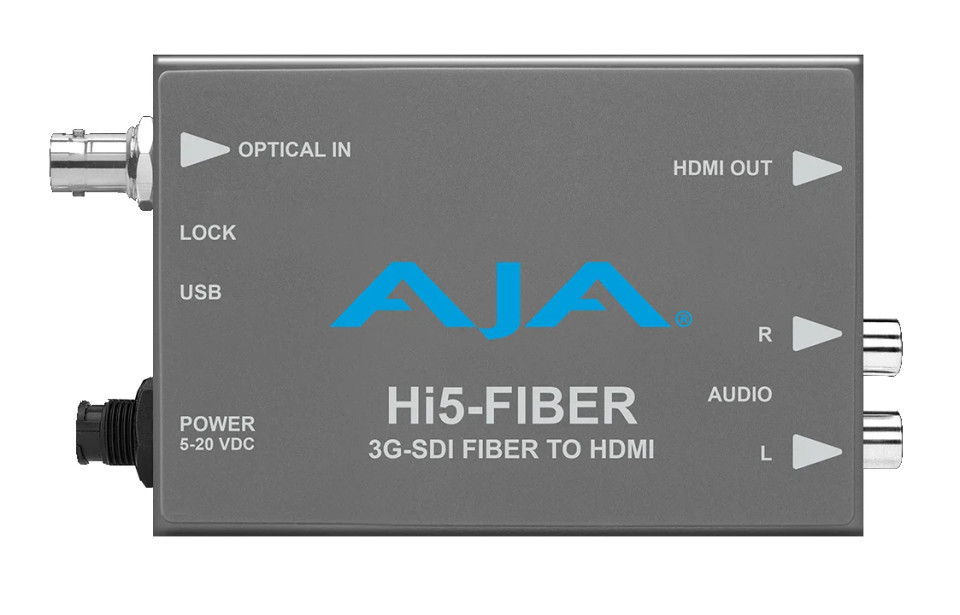

Hi5-Fiber converts 3G-SDI over single mode 1310 nm Fiber optic cable (ST-style Fiber connector) to HDMI for driving HDMI monitors. Embedded 8-channel 3G-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. Hi5-Fiber provides 2-Channel RCA style audio outputs for separate audio monitoring if needed.

Features

• Fiber optic 3G-SDI to HDMI
• Supports single mode 1310 nm fiber optic cable with ST receiver
• Full HDMI support including embedded audio
• Additional 2-Channel RCA jack audio output
• No configuration necessary
• 1m HDMI cable included
• Five year warrant

USB and Mini-Config Support

AJA’s free Mini-Config software can be used with any USB enabled AJA Mini-Converter and provides an easy to use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Universal Power Supply

Customers can purchase a spare universal power supply for use with any of their Mini-Converters. This universal power supply includes international plug connections for use around the world.
Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix

Information on the complete line of AJA converters, routers, frame synchronizers, and openGear cards are available in Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Specifications

Video Formats

• (2K) 2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2K x 1080PsF* 23.98, 24, 25, 29.97, 30
• (HD) 1080i 50, 59.94, 60
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080PsF* 23.98, 24, 25, 29.97, 30
• (HD) 720p 50, 59.94, 60
• (SD) 625i
• (SD) 525i

*NOTE: converts to progressive

Video Input

• Single mode optical fiber, ST connector supporting SMPTE-259/292/424 3G/HD/SD-SDI

Video Outputs

• HDMI with embedded audio up to 8-Channels (selectable by Mini-Config)
  • 12-bit
  • 10-bit YCbCr 4:2:2
  • 8-bit RGB 4:4:4

Audio Input

• SDI embedded audio, select from 16-Channels

Audio Output

• 2-Channel RCA style (-10 dBu nominal)

Size (w x d x h)

• 4.6" x 2.4" x 1.0" (116.84 x 60.96 x 25.4 mm)

Weight

• 0.4 lb (0.2 kg)

Power

• Universal power supply included
• 100-240V, 50/60 Hz universal input
• +5V DC regulated, 3 watts

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
