Overview

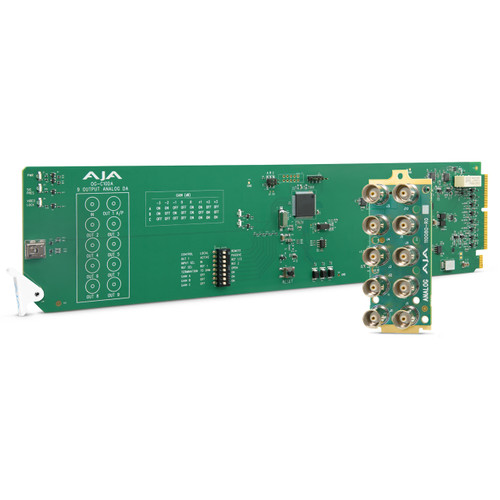

The C10DA is a 1x6 analog distribution amplifier with support for NTSC and PAL offering the ability to distribute multiple copies of the incoming signal or extend content of composite video with gain adjustment to compensate for long cable runs where needed.
The C10DA can also be used to DA Tri-Level sync in an HD facility when a sync signal is fed externally into the Video Input.
Overview
The C10DA is a 1x6 analog distribution amplifier with support for NTSC and PAL offering the ability to distribute multiple copies of the incoming signal or extend content of composite video with gain adjustment to compensate for long cable runs where needed.
The C10DA can also be used to DA Tri-Level sync in an HD facility when a sync signal is fed externally into the Video Input
Universal Power Supply
Customers can purchase a spare universal power supply for use with any of their Mini-Converters. This universal power supply includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
Specifications
Formats
• NTSC
• PAL
• Bi-level Reference
• Tri-level Reference
• AES3-id
• LTC
Inputs
• 1 Analog, Differential, 1 x BNC
Outputs
• 6 Analog, 6 x BNC
Termination
• 75 Ohms or nonterminated
Video Bandwidth
• 0 – 6 MHz +/- 0.1dB
Gain
• -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, +/- 0.3dB
Diff Gain
• 0.15%, not load dependent
Diff Phase
• 0.1 degree, not load dependent
H/V Tilt
• < 0.1%
Response Variation
• < 0.1dB 1 to 6 loads
Coupling
• DC
Max Common Mode Signal
• 10Vp-p
Return Loss
• > 35dB to 6 MHz all inputs and outputs
Output Isolation
• >40dB
User Controls
• External Dipswitch
• Termination
• Gain
Size (w x d x h)
• 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
Weight
• 0.8 lb (0.3 kg)
Power
• 5VDC Regulated, 2 Watts, power supply required, included with purchase
Environment
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
