Overview

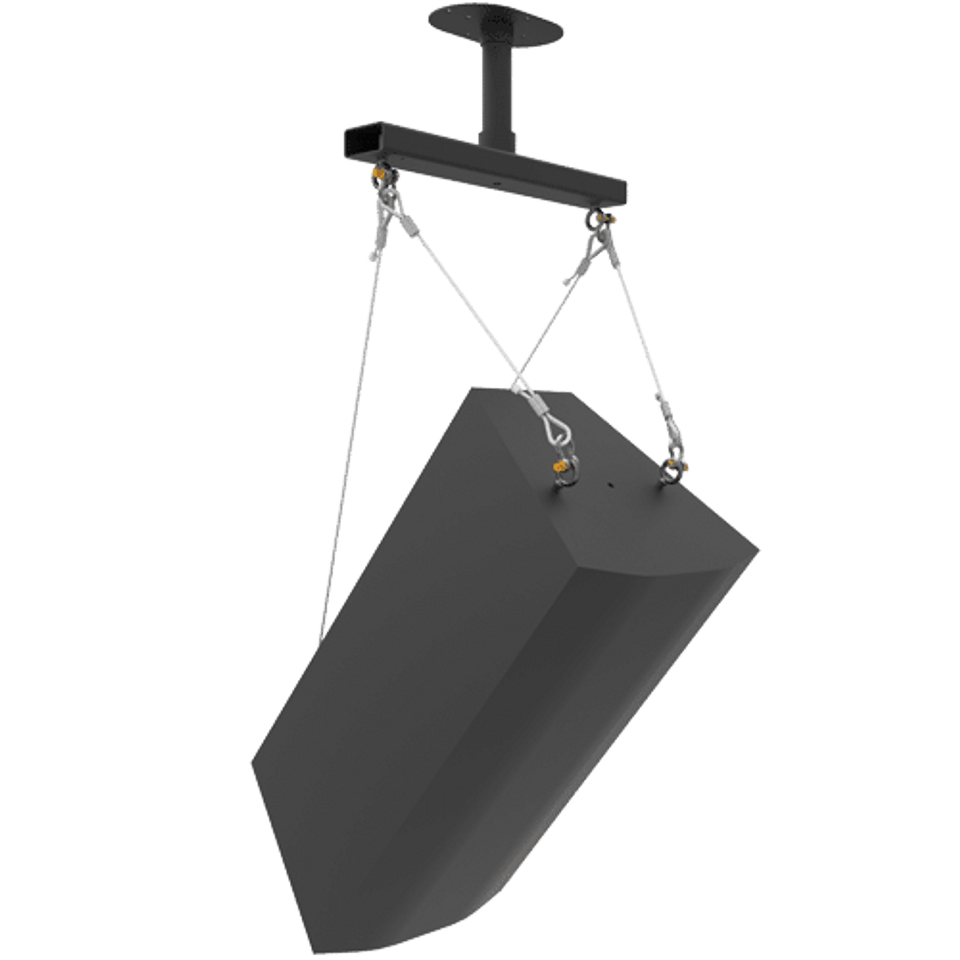

The Steerables® Ceiling Mount, SAS-100-CM, suspends and aims loudspeakers and other objects weighing up to 100 lbs/45 Kg up close to ceiling and other overhead surfaces.
This design is ideal for applications where cabinets equipped with suspension points need to be suspended and aimed, close but out of reach of the audience. Typical applications include churches, schools, gymnasiums, auditoriums, theme parks, nightclubs, bars and restaurants.
Loudspeaker cabinets equipped with suspension or mounting points can be easily mounted and aimed from ceilings and other structurally secure overhead structures with unprecedented ease of installation and precise adjustments.
Specifications
| Material: Structural Steel Alloy | 1 pc. Ceiling Plate | |
| Finish: Powder Coat | 1 pc. 1-1/2″ Connector Tube | |
| Color: Black | 1 pc. Cross Arm | |
| Pan Rotation: 360° horizontal swivel max. | 1 pc. Hardware Kit | |
| Working Load Limit: 100 lbs./45 kg. | ||
| Design Factor: 10:1 ratio based on ultimate yield point | ||
| Net Weight: 11.5 lbs./5.2 Kg. | ||
| Shipping Weight: 12.5 lbs./5.7 Kg | ||
| Pack Count: 1/carton | ||
| Hardware for mounting to the ceiling structure is not included. | ||
| Tilt mechanism is ordered separately. |
Dimensions
