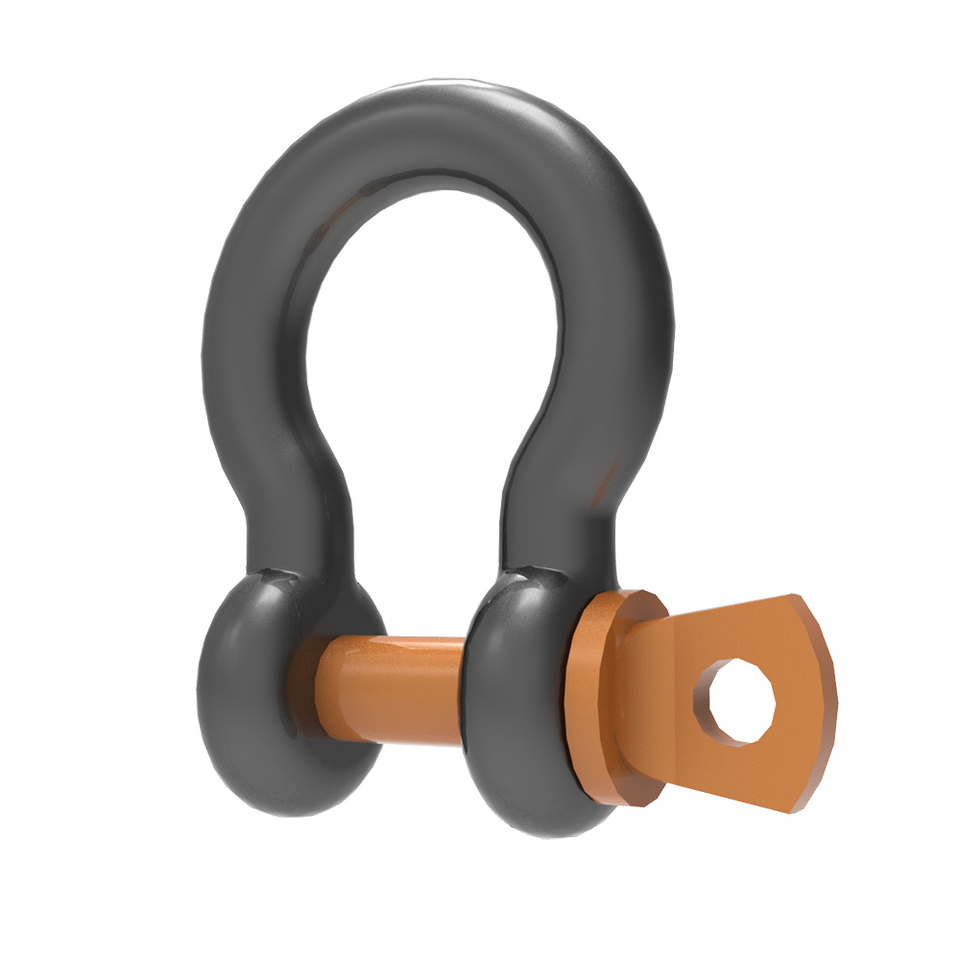

The screw pin version of shackle is ideal for the joining of two closedend items together, such as wire rope assemblies, turnbuckles and eyebolts. The small hole in its pin offers a back up safety feature by securing a wire or cable tie through the holes and around the body of the shackle. This prevents the pin from loosening through vibration and is known as “mousing” the shackle. Shackles are rated for overhead suspensions because of this redundant locking feature and the radius portion of their body structurally accommodates three way bridles.

SPECIFICATIONS:

• Materials: Steel Aircraft Cable 7X19

• Diameter: 1/4” .025 / 6mm

• Finish: Galvanized

• Color: Silver

• Design Factor: 5:1 ratio

• WLL: 1400 lb / 636 Kg
