Overview

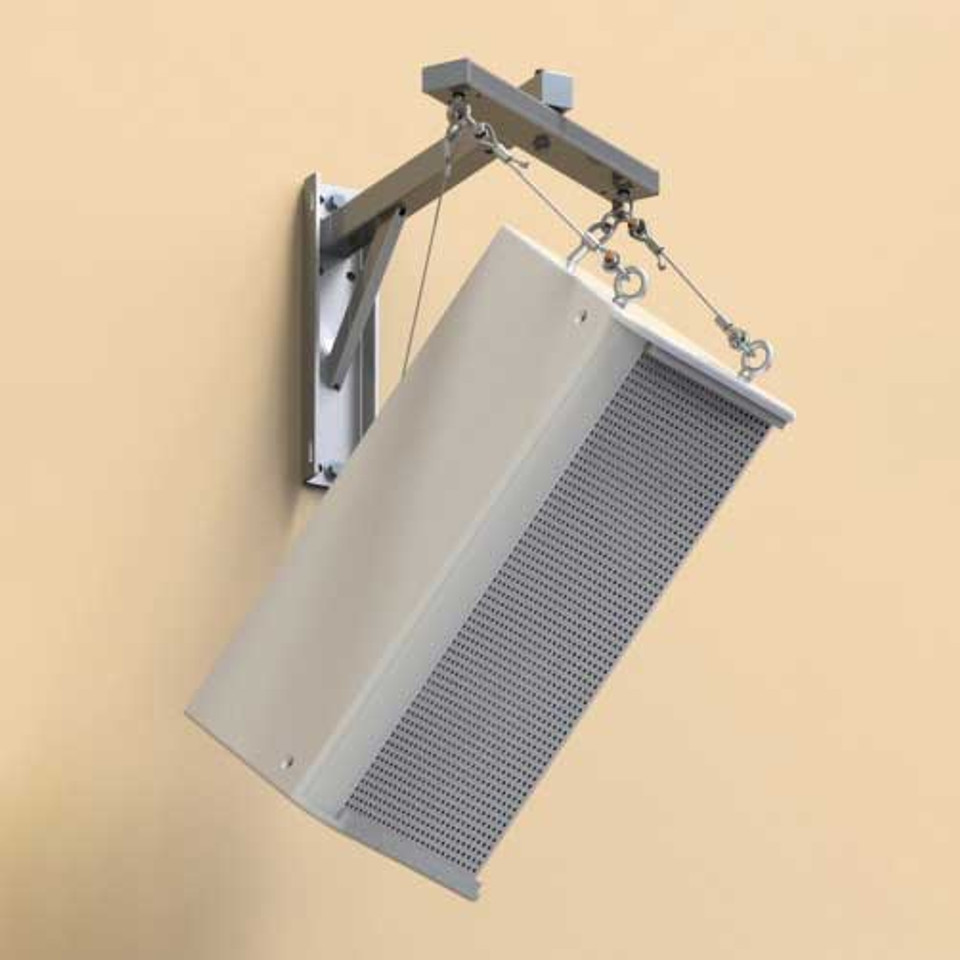

The Steerables® SAS-200-WM-G is an outdoor rated speaker mount that suspends and aims loudspeakers from walls and other vertical structures. Loudspeaker cabinets equipped with suspension or mounting points can be suspended and aimed with unprecedented ease and precision. Pan and tilt adjustments can be made or remade within seconds.

Ideal applications include permanently installed loudspeakers at ball parks, retail centers, theme parks, and ourdoor entertainments centers.

The Steerables® unique Cross-Arm steering mechanism provides up to 360 degrees of pan control while tilting is achieved either through the addition of a standard U-Series bracket or Steerables® Tilt Cable Kit (see respective data sheets for more details).

This galvanized structural steel assembly comes in just two ready to mount sections and will support loads of up to 200 lbs./90.9 Kg. with testing to over seven times its normal working load.

Features

• Suspends riggable loudspeakers from walls and other vertical surfaces
• Unique cross arm steering mechanism offers 360° of pan control
• Significant reductions in installation and planning time
• Accommodates standard U-Series mounts and Steerables® Tilt Cable Kits
• Minimal mounting surface area required
• Galvanized for outdoor use

Specifications

• Materials: Structural Steel
• Finish: Galvanized
• Color: Silver
• Pan Rotation: 360° Horizontal Swivel Max
• Working Load Limit: 200 lbs/90.9 kg
• Design Factor: 7:1 Ratio
• Net Weight: 21.5 lbs/9.8 kg
• Shipping Weight: 25 lbs/7.7 kg
• Pack Count: 1/carton
