Overview

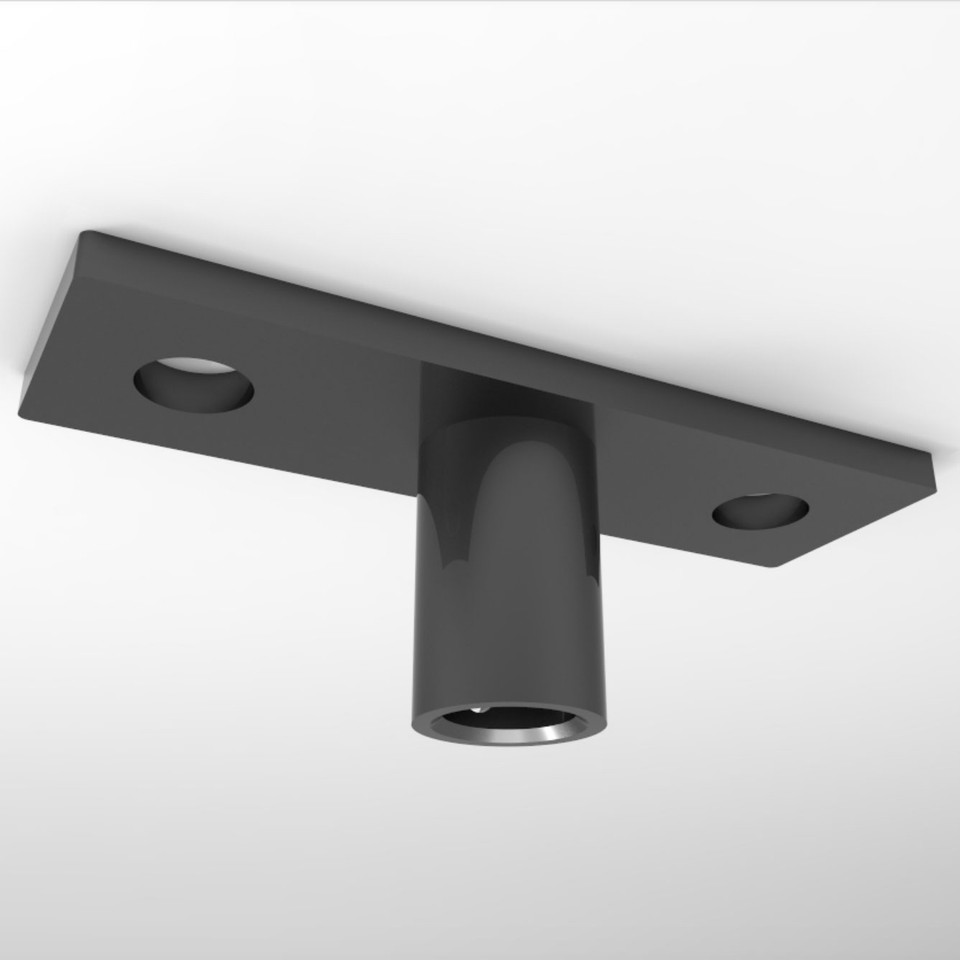

The MP-500NPS-TA is a tube adapter that connects standard ½-14 sched-40 NPT pipes to channel strut. This adapter allows speakers and other objects to be mounted to channel strut using standard off the shelf ½-14 sched-40 NPT pipes.
The MP-500NPS-TA is designed to hold overhead objects with a maximum weight of 80 lbs. Maximum length of 48” long pipe is recommended.
Features
- For overhead loudspeaker applications.
- Adapts to standard schedule-40 ½” pipe.
Specifications
| Material: Structural Steel | 1 pc Tube Adapter, ½-14NPT/NPS | |
| Finish: Powder Coat | 1 pc Sound Isolation Pad | |
| Color: Black | 2 pcs Flange bolt, 1/2”-13×1.5”,blk | |
| Design Factor: 5:1 | 2 pcs Channel retainer nut, ½”-13 | |
| WLL: 80 lb / 36.3 Kg | 1 pc Set screw, ¼-20 | |
| Shipping Weight: 1.2 lbs / .55 Kg |
